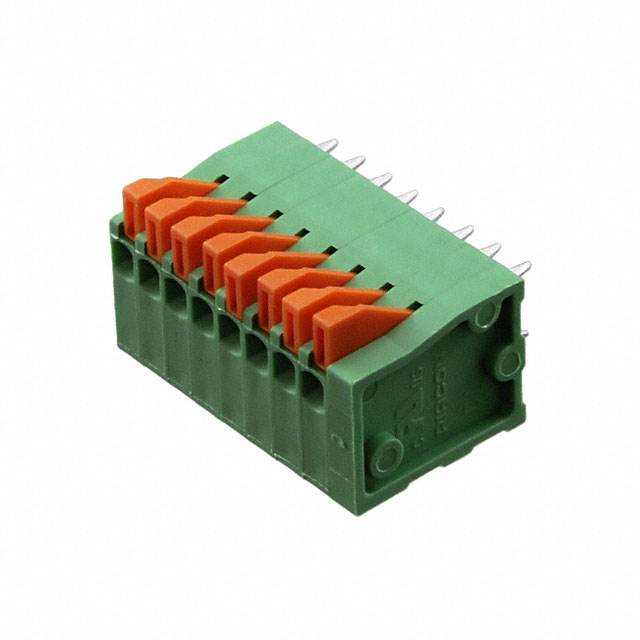

AST0820806
ActiveMETZ CONNECT USA Inc.
TERM BLK 8POS TOP ENT 2.54MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AST0820806
ActiveMETZ CONNECT USA Inc.
TERM BLK 8POS TOP ENT 2.54MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AST0820806 |
|---|---|
| Clamp Material - Plating | Steel |
| Color | Green |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 6 A |
| Features | Push Button Actuated |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Positions Per Level | 8 |
| Voltage | 150 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.20 | |
| 10 | $ 4.72 | |||
| 25 | $ 4.42 | |||
| 50 | $ 3.93 | |||
| 100 | $ 3.85 | |||
| 250 | $ 3.55 | |||
| 500 | $ 3.20 | |||
| 1000 | $ 2.84 | |||
Description
General part information
AST082 Series
8 Position Wire to Board Terminal Block Vertical with Board 0.100" (2.54mm) Through Hole
