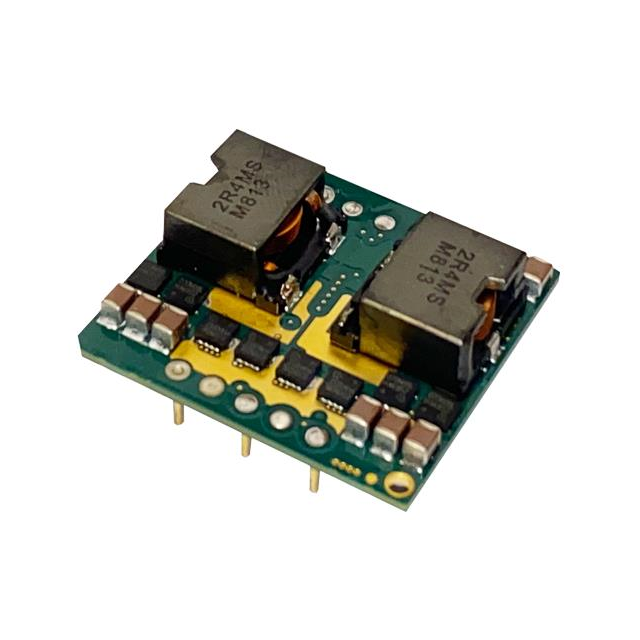

I7A4W033A033V-000-R

Active

TDK-LAMBDA

DC DC CONVERTER 3.3-24V 500W

Search across all available documentation for this part.

Active

TDK-LAMBDA

DC DC CONVERTER 3.3-24V 500W

Technical Specifications

Parameters and characteristics for this part

Specification	I7A4W033A033V-000-R

Applications	ITE (Commercial)
Approval Agency	cURus, CE, IEC
Control Features	Active High, Enable
Current - Output (Max) [Max]	33 A
Efficiency	97 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	500 W
Size / Dimension [x]	1.45 "
Size / Dimension [x]	36.8 mm
Size / Dimension [y]	1.34 in
Size / Dimension [y]	34 mm
Size / Dimension [z]	0.45 "
Size / Dimension [z]	11.5 mm
Standard Number	62368-1
Supplier Device Package	Sixteenth Brick
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	18 V
Voltage - Output 1 [Max]	24 V
Voltage - Output 1 [Min]	3.3 V

Part	Efficiency	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Standard Number	Number of Outputs	Mounting Type	Applications	Approval Agency	Type	Supplier Device Package	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Control Features	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
TDK-LAMBDA I7A4W033A033V-000-R	97 %	60 V	1.34 in	0.45 "	1.45 "	36.8 mm	34 mm	11.5 mm	Sixteenth Brick	62368-1	1	Through Hole	ITE (Commercial)	CE cURus IEC	Non-Isolated PoL Module	Sixteenth Brick	18 V	500 W	125 °C	-40 °C	33 A	Active High Enable	Adjustable Output Remote On/Off Remote Sense	24 V	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 3.3V ~ 24V 33A 18V - 60V Input
