111-01934

Active

HELLERMANNTYTON

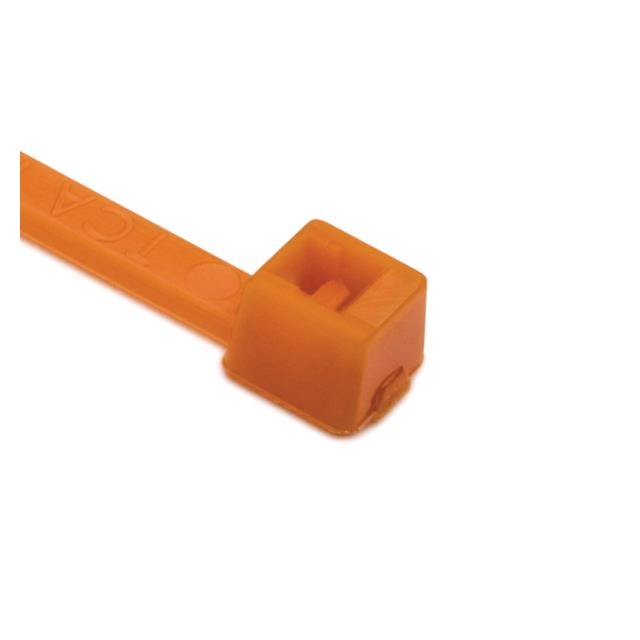

CBL TIE LOCKING ORG 18LBS 3.94"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

111-01934

Active

HELLERMANNTYTON

CBL TIE LOCKING ORG 18LBS 3.94"

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	111-01934

Bundle Diameter [diameter]	0.86 in
Bundle Diameter [diameter]	22 mm
Features	Halogen Free
Length - Actual [x]	3.94 in
Length - Actual [x]	0.328 ft
Length - Actual [x]	100 mm
Length - Approximate	4 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	18 lbs
Tensile Strength	8.16 kg
Width [y]	0.096 in
Width [y]	2.45 mm
Wire/Cable Tie Type	Standard, Locking

111-01 Series

Part	Width [y]	Width [y]	Material	Color	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Mounting Type	Bundle Diameter	Bundle Diameter	Length - Approximate	Tensile Strength	Tensile Strength	Wire/Cable Tie Type	Features	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width [x]	Width [x]	Length - Actual	Length - Actual	Length - Actual	Width
HELLERMANNTYTON 111-01564	0.181 in	4.6 mm	Polyamide (PA12) Nylon 12	Black	202 mm	0.663 ft	7.95 "	Free Hanging (In-Line)	50 mm	1.97 in	8 in	20.41 kg	45 lbs	Locking Standard	Chemical Resistant UV Resistant
HELLERMANNTYTON 111-01664	0.094 in	2.4 mm	Metal Detectable Polypropylene (PP)	Blue	100 mm	0.328 ft	3.94 in	Free Hanging (In-Line)			4 in	18.67 kg	19 lbs	Locking Standard		0.87 in	22.1 mm
HELLERMANNTYTON 111-01611			Ethylenterafluorineethylene (ETFE)	Blue				Free Hanging (In-Line)			4 in	8.16 kg	18 lbs	Locking Standard		0.87 in	22.1 mm	0.1 "	2.54 mm	0.328 ft	3.93 in	100 mm
HELLERMANNTYTON 111-01572			Polyacetal (POM)	Black	530 mm	1.739 ft		Free Hanging (In-Line)			20.75 in	79.4 kg	175 lbs	Locking Standard		5.91 "	150 mm	0.35 in					8.89 mm
HELLERMANNTYTON 111-01136	0.299 in	7.59 mm	Metal Detectable Nylon 6/6 Polyamide (PA66)	Blue				Free Hanging (In-Line)				54.43 kg	120 lbs	Locking Standard	Halogen Free	3.94 in	100 mm
HELLERMANNTYTON 111-01128	0.189 in	4.8 mm	Polyamide (PA66) Nylon 6/6	Black				Free Hanging (In-Line)	109.22 mm	4.3 in	15.25 in	22.68 kg	50 lbs	Locking Standard						1.28 ft		390 mm
HELLERMANNTYTON 111-01699			Polyaryletherketone (PAEK)	Beige	200.66 mm	0.658 ft	7.9 in	Free Hanging (In-Line)			8 in	45.36 kg	100 lbs	Locking Standard		2 in	50.8 mm	0.315 in	8 mm
HELLERMANNTYTON 111-01934	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6		100 mm	0.328 ft	3.94 in	Free Hanging (In-Line)			4 in	8.16 kg	18 lbs	Locking Standard	Halogen Free	0.86 in	22 mm
HELLERMANNTYTON 111-01225			Polyamide (PA66) Nylon 6/6	Blue	101.6 mm	0.333 '	4 in	Free Hanging (In-Line)			4 in	8.16 kg	18 lbs	Locking Standard		0.87 in	22.1 mm	0.1 "	2.54 mm
HELLERMANNTYTON 111-01601			Polyamide (PA66) Nylon 6/6	Black	304.8 mm	1 '		Free Hanging (In-Line)			12 in	22.68 kg	50 lbs	Locking Standard		3.15 in	80 mm	0.18 in	4.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.23
		300	$ 0.21
		500	$ 0.20
		1000	$ 0.17
		2500	$ 0.15
		5000	$ 0.14
		10000	$ 0.13
