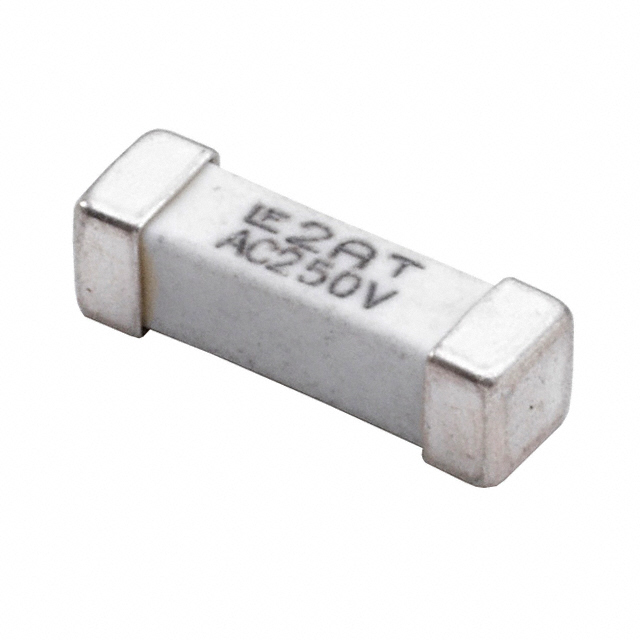

044301.5DR
ActiveELECTRIC FUSE, TIME LAG BLOW, 1.5A, 250VAC, 50A (IR), SURFACE MOUNT, NANO, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
044301.5DR
ActiveELECTRIC FUSE, TIME LAG BLOW, 1.5A, 250VAC, 50A (IR), SURFACE MOUNT, NANO, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 044301.5DR |
|---|---|
| Approval Agency | cULus |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 1.5 A |
| DC Cold Resistance | 0.1 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 14.72 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Slow Blow |
| Size / Dimension [x] | 0.398 in |
| Size / Dimension [x] | 10.1 mm |
| Size / Dimension [y] | 0.123 in |
| Size / Dimension [y] | 3.12 mm |
| Size / Dimension [z] | 3.12 mm |
| Size / Dimension [z] | 0.123 " |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
044301.5 Series
The 443LC Series NANO²® fuse is a 4012 footprint, Slo Blo surface mount fuse which provides overcurrent protection for applications with working voltage up to 277VAC. Its high I2t provides superior surge withstand capability for its small footprint. This can therefore be used on applications where board space is a limitation, without worrying of any nuisance failures due to surge/pulse current and voltages in the application, or where larger sized solutions are previously being used.
