EP3W47RJ
ActiveTE Connectivity Passive Product

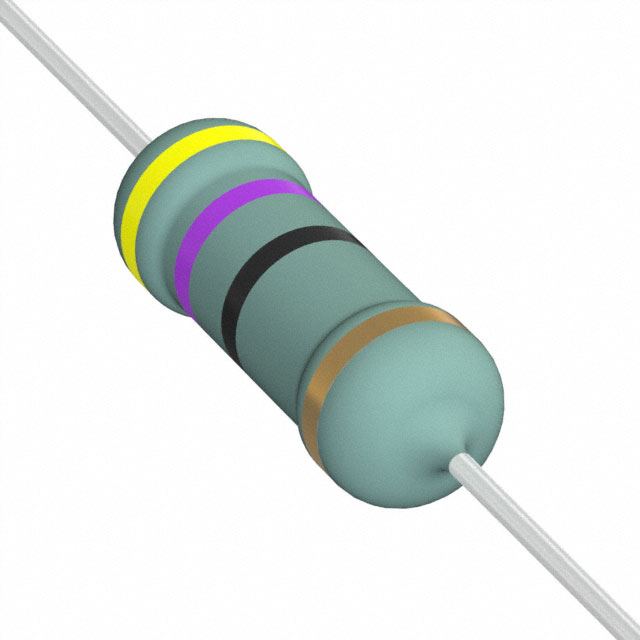

RES 47 OHM 5% 3W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EP3W47RJ
ActiveTE Connectivity Passive Product
RES 47 OHM 5% 3W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EP3W47RJ |
|---|---|
| Composition | Wirewound |
| Features | Pulse Withstanding, Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 3 W |
| Resistance | 47 Ohms |
| Size / Dimension [diameter] | 6.5 mm |
| Size / Dimension [diameter] | 0.256 in |
| Size / Dimension [x] | 0.689 in |
| Size / Dimension [x] | 17.5 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| Tape & Box (TB) | 500 | $ 0.12 | ||
| 1000 | $ 0.11 | |||
Description
General part information
EP3W Series
47 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
