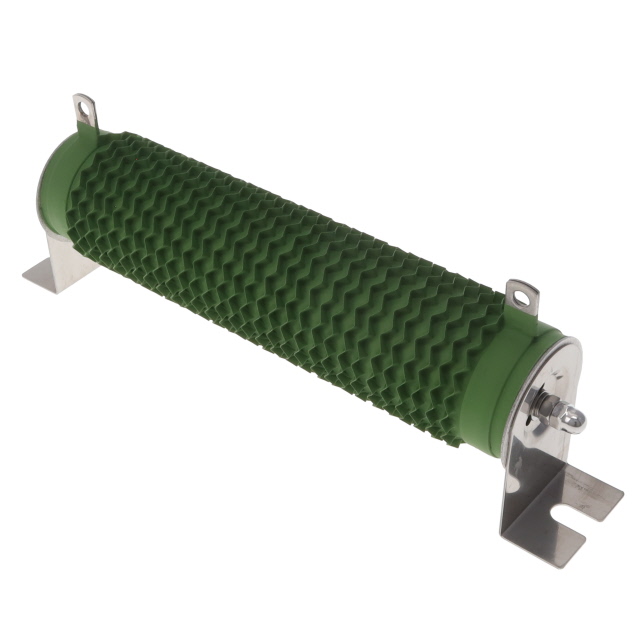

TE200B1R2J

Active

TE Connectivity Passive Product

RES CHAS MNT 1.2 OHM 5% 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TE200B1R2J

Active

TE Connectivity Passive Product

RES CHAS MNT 1.2 OHM 5% 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE200B1R2J

Coating, Housing Type	Silicone Coated
Composition	Wirewound
Features	Flame Proof, Safety
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Tubular
Power (Watts)	200 W
Resistance	1.2 Ohms
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Size / Dimension [x]	195 mm
Size / Dimension [x]	7.677 in
Temperature Coefficient	440 ppm/°C
Tolerance	5 %

TE200 Series

Part	Power (Watts)	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case	Coating, Housing Type	Tolerance	Lead Style	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Features	Temperature Coefficient	Mounting Feature	Resistance
TE Connectivity Passive Product TE200B1R5J	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets
TE Connectivity Passive Product TE200B220RJ	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets	220 Ohms
TE Connectivity Passive Product TE200B330RJ	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets	330 Ohms
TE Connectivity Passive Product TE200B150RJ	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets	150 Ohms
TE Connectivity Passive Product TE200B3R3J	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets	3.3 Ohms
TE Connectivity Passive Product TE200B47RJ	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets	47 Ohms
TE Connectivity Passive Product TE200B3R9J	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets	3.9 Ohms
TE Connectivity Passive Product TE200B1R2J	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets	1.2 Ohms
TE Connectivity Passive Product TE200B8R2J	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets
TE Connectivity Passive Product TE200B10RJ	200 W	1.575 "	195 mm	40 mm	7.677 in	Radial Tubular	Silicone Coated	5 %	Solder Lugs	Wirewound	155 °C	-55 °C	Flame Proof Safety	440 ppm/°C	Brackets	10 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.74
		10	$ 29.01
		25	$ 27.85
		50	$ 26.42
		100	$ 24.46
		250	$ 24.27

Description

General part information

TE200 Series

1.2 Ohms ±5% 200W Wirewound Chassis Mount Resistor
