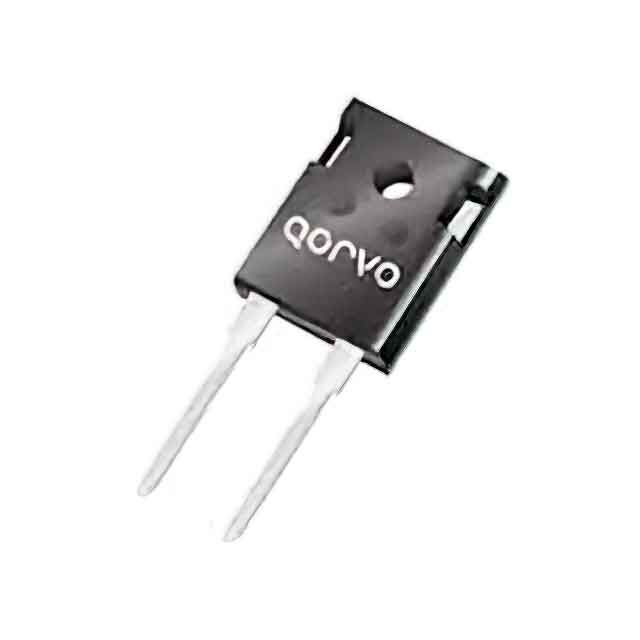

UJ3D1210K2

Active

Qorvo

1.2KV 1.6V@10A 10A TO-247-2 SIC DIODES ROHS

Search across all available documentation for this part.

Active

Qorvo

1.2KV 1.6V@10A 10A TO-247-2 SIC DIODES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	UJ3D1210K2

Capacitance @ Vr, F	510 pF
Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	110 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-247-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-247-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.6 V

Part	Mounting Type	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Capacitance @ Vr, F
Qorvo UJ3D1210K2	Through Hole	110 µA	TO-247-2	10 A	1.6 V	0 ns	SiC (Silicon Carbide) Schottky	1.2 kV	No Recovery Time	175 ░C	-55 C	TO-247-2	510 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1200 V 10A Through Hole TO-247-2

Technical documentation and resources

No documents available
