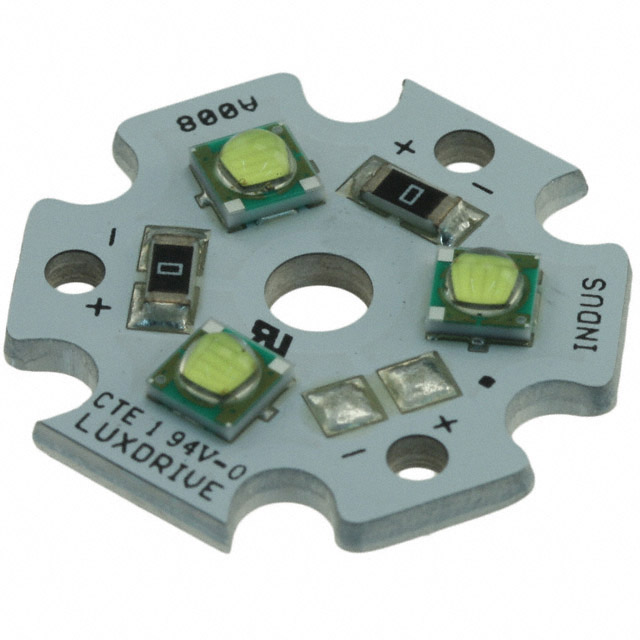

A008-GW765-R5

Obsolete

LEDdynamics Inc.

LED MOD INDUS STARBRD 6500K

Search across all available documentation for this part.

Obsolete

LEDdynamics Inc.

LED MOD INDUS STARBRD 6500K

Technical Specifications

Parameters and characteristics for this part

Specification	A008-GW765-R5

CCT (K)	6500 K
Color	Cool, White
Configuration	Starboard
Current - Max [Max]	700 mA
Current - Test	350 mA
Height [z]	3.75 mm
Lens Type	Domed
Luminous Flux @ Current/Temperature	432 lm
Size / Dimension [x]	19.9 mm
Size / Dimension [y]	19.9 mm
Type	LED Module

Part	Current - Test	Current - Max [Max]	Luminous Flux @ Current/Temperature	Lens Type	Color	CCT (K)	Type	Height [z]	Configuration	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)
LEDdynamics Inc. A008-GW765-R5	350 mA	700 mA	432 lm	Domed	Cool White	6500 K	LED Module	3.75 mm	Starboard	19.9 mm	19.9 mm
LEDdynamics Inc. A008-G2765-R5				Domed			LED Module		Starboard
LEDdynamics Inc. A008-G2750-R2				Domed			LED Module		Starboard
LEDdynamics Inc. A008-GW830-Q4	350 mA	700 mA	315 lm	Domed	Warm White		LED Module	3.75 mm	Starboard	19.9 mm	19.9 mm	80
LEDdynamics Inc. A008-G2830-Q5				Domed			LED Module		Starboard
LEDdynamics Inc. A008-G2740-R2				Domed			LED Module		Starboard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Indus Star™ White, Cool Starboard

Technical documentation and resources

No documents available
