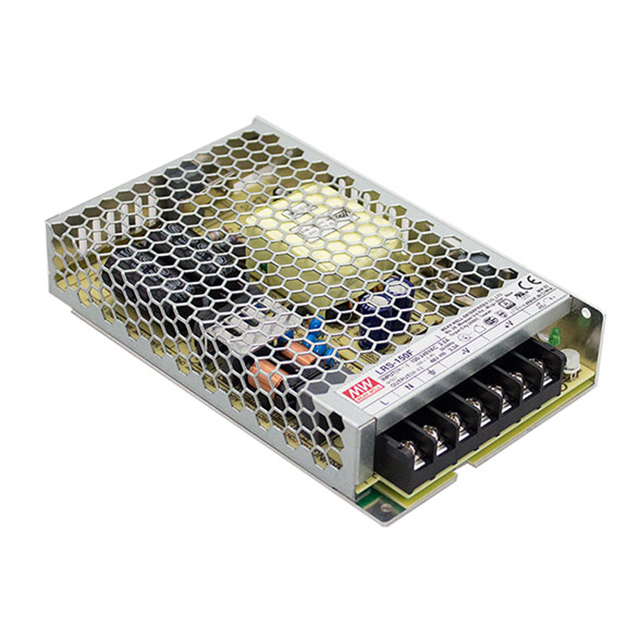

LRS-150F-24

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 156W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 156W

Technical Specifications

Parameters and characteristics for this part

Specification	LRS-150F-24

Applications	Household Appliances, ITE (Commercial)
Approval Agency	cURus, RCM, CCC, TUV, CB, CE
Efficiency	89 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	156 W
Size / Dimension [x]	6.26 in
Size / Dimension [x]	159 mm
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Type	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Efficiency	Applications	Features	Voltage - Output 1	Approval Agency	Power (Watts)	Voltage - Isolation	Number of Outputs	Current - Output 1
MEAN WELL USA Inc. LRS-150F-24	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	70 °C	-30 °C	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	Chassis Mount	89 %	Household Appliances ITE (Commercial)	Adjustable Output Universal Input	24 V	CB CCC CE cURus RCM TUV	156 W	4000 V	1
MEAN WELL USA Inc. LRS-150-24	Enclosed	85 VAC 170 VAC 240 V	132 VAC 264 VAC 370 VDC	70 °C	-30 °C	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	Chassis Mount	89 %	Household Appliances ITE (Commercial)	Adjustable Output	24 V	CB CCC CE cURus TUV	156 W	4000 V	1
MEAN WELL USA Inc. LRS-150F-12	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	70 °C	-30 °C	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	Chassis Mount	87.5 %	Household Appliances ITE (Commercial)	Adjustable Output Universal Input	12 V	CB CCC CE cURus RCM TUV	150 W	4000 V	1	12.5 A
MEAN WELL USA Inc. LRS-150-12	Enclosed	85 VAC 170 VAC 240 V	132 VAC 264 VAC 370 VDC	70 °C	-30 °C	30 mm	3.82 in	1.18 in	6.26 in	159 mm	97 mm	Chassis Mount	87.5 %	Household Appliances ITE (Commercial)	Adjustable Output	12 V	CB CCC CE cURus TUV	150 W	4000 V	1	12.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
