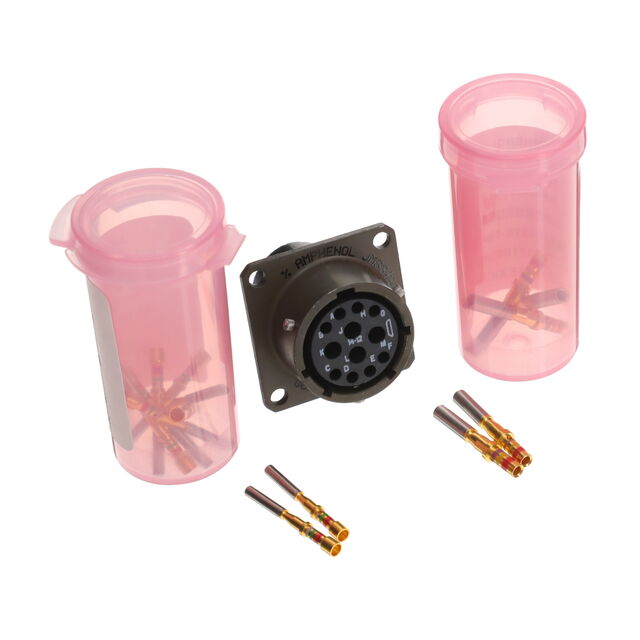

MS3122E14-12S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

MS3122E14-12S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3122E14-12S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	14-12
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

MS3122E14 Series

Part	Connector Type	Termination	Shielding	Orientation	Shell Size - Insert	Shell Material	Fastening Type	Mounting Feature	Contact Finish - Mating	Ingress Protection	Shell Finish	Qualification	Primary Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Grade	Insert Material	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Contact Shape	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Contact Size	Type	Contact Type	Note	Housing Color	Current Rating (Amps)	Voltage Rating
Amphenol Industrial Operations MS3122E14-5S	Receptacle Female Sockets	Crimp	Unshielded	N	14-5	Aluminum	Bayonet Lock	Flange	Gold	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Metal	Olive Drab	-55 °C	125 °C	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Military	Neoprene	Copper Alloy
Amphenol Industrial Operations MS3122E14-15PY	Male Pins Receptacle	Crimp	Unshielded	Y		Aluminum	Bayonet Lock	Flange	Gold	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Metal	Olive Drab	-55 °C	125 °C	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Military	Neoprene	Copper Alloy	14	15	15
Amphenol Industrial Operations MS3122E14-5PX
Amphenol Industrial Operations MS3122E14-5PW
Amphenol Industrial Operations MS3122E14-5S(LC)
Amphenol Industrial Operations MS3122E14-19PLC	Receptacle Housing		Unshielded	N		Aluminum	Bayonet Lock	Flange		Environment Resistant	Chromate over Cadmium	MIL-DTL-26482 Series I			-55 °C	125 °C		Military	Neoprene				19	Circular	19	14	20	For Male Pins	Crimp	Contacts Not Included	Olive Drab
Amphenol Industrial Operations MS3122E14-12PW
Amphenol Industrial Operations MS3122E14-12S	Receptacle Female Sockets	Crimp	Unshielded	N	14-12	Aluminum	Bayonet Lock	Flange	Gold	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Metal	Olive Drab	-55 °C	125 °C	Aerospace Industrial Instrumentation Mass Transit Military	Military	Neoprene	Copper Alloy			12									7.5 A 13 A	600 VAC
Amphenol Industrial Operations MS3122E14-19SLC	Receptacle Housing		Unshielded	N		Aluminum	Bayonet Lock	Flange		Environment Resistant	Chromate over Cadmium	MIL-DTL-26482 Series I			-55 °C	125 °C		Military	Neoprene				19	Circular	19	14	20	For Female Sockets	Crimp	Contacts Not Included	Olive Drab
Amphenol Industrial Operations MS3122E14-5PY	Male Pins Receptacle	Crimp	Unshielded	Y	14-5	Aluminum	Bayonet Lock	Flange	Gold	Environment Resistant	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I	Metal	Olive Drab	-55 °C	125 °C	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Military	Neoprene	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 163.44
		10	$ 149.98
		25	$ 144.21
		50	$ 139.41

Description

General part information

MS3122E14 Series

12 Position Circular Connector Receptacle, Female Sockets Crimp
