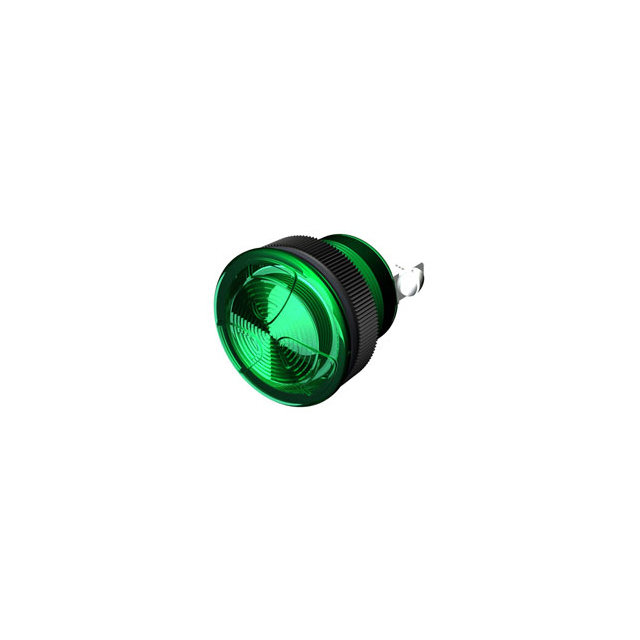

TLL-87G-12V-S

Active

Floyd Bell Inc

PANEL MOUNT GREEN CONTINUOUS OUT

Search across all available documentation for this part.

Active

Floyd Bell Inc

PANEL MOUNT GREEN CONTINUOUS OUT

Technical Specifications

Parameters and characteristics for this part

Part	Type	Lamp Color	Voltage	Lens Color	Termination Style	Panel Cutout Shape	Ingress Protection	Current	Lens Transparency	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size [diameter]
Floyd Bell Inc TLL-87W-12V-S	LED	White	12 V	Colorless	Screw Terminal	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87Y-24V-Q	LED	Yellow	24 V	Yellow	Quick Connect	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87Y-12V-S	LED	Yellow	12 V	Yellow	Screw Terminal	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87G-12V-S	LED	Green	12 V	Green	Screw Terminal	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87R-24V-S	LED	Red	24 V	Red	Screw Terminal	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87G-24V-Q	LED	Green	24 V	Green	Quick Connect	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87W-24V-Q	LED	White	24 V	Colorless	Quick Connect	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87B-24V-S	LED	Blue	24 V	Blue	Screw Terminal	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87B-12V-Q	LED	Blue	12 V	Blue	Quick Connect	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm
Floyd Bell Inc TLL-87G-24V-S	LED	Green	24 V	Green	Screw Terminal	Round	IP68	80 mA	Diffused	DC	26.8 mm	1.06 "	33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.67

General part information

LED Panel Indicator Green Diffused 12V 80mA Screw Terminal

Technical documentation and resources

No documents available
