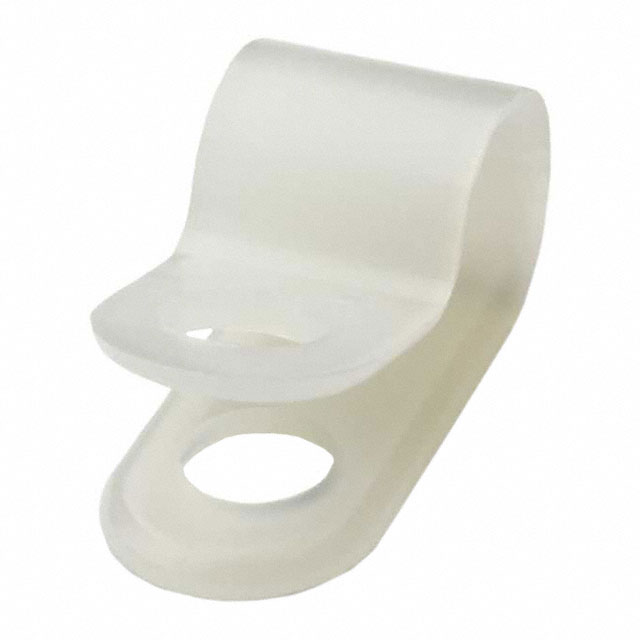

T3D025010M4

Obsolete

HELLERMANNTYTON

CBL CLAMP P-TYPE WHITE FASTENER

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

CBL CLAMP P-TYPE WHITE FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	T3D025010M4

Bundle Center to Mounting Center	0.41 in
Bundle Center to Mounting Center	10.41 mm
Color	White
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.05 in
Material Thickness	1.27 mm
Mounting Type	Fastener
Opening Size	6.35 mm
Opening Size [diameter]	0.25 in
Panel Hole Size	5.16 mm
Panel Hole Size	0.203 in
Type	Clamp, P-Type
Width [x]	0.375 in
Width [x]	9.53 mm

Part	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material Thickness	Material Thickness	Opening Size [diameter]	Opening Size	Mounting Type	Material	Width [x]	Width [x]	Type	Color	Panel Hole Size	Panel Hole Size	Material Flammability Rating
HELLERMANNTYTON T3D025010M4	0.41 in	10.41 mm	0.05 in	1.27 mm	0.25 in	6.35 mm	Fastener	Polyamide (PA66) Nylon 6/6	0.375 in	9.53 mm	Clamp P-Type	White	5.16 mm	0.203 in	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clamp, P-Type White Fastener 0.250" (6.35mm)
