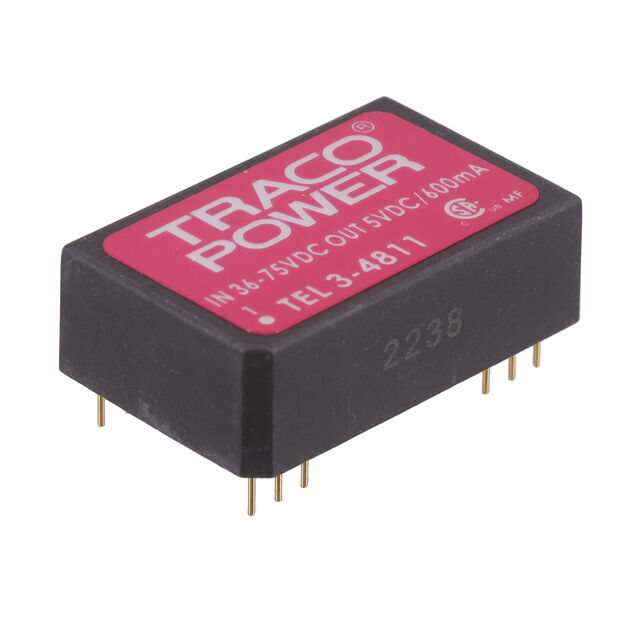

TEL 3-4811
Traco Power
DC DC CONVERTER 5V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TEL 3-4811 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 600 mA |
| Efficiency | 77 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 13 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.90 | |
| 10 | $ 14.54 | |||
| 25 | $ 14.06 | |||
| 50 | $ 13.71 | |||
| 100 | $ 13.37 | |||
| 250 | $ 12.93 | |||
| 500 | $ 12.60 | |||
Description
General part information
TEL 3 Series
Isolated Module DC DC Converter 1 Output 5V 600mA 36V - 75V Input
