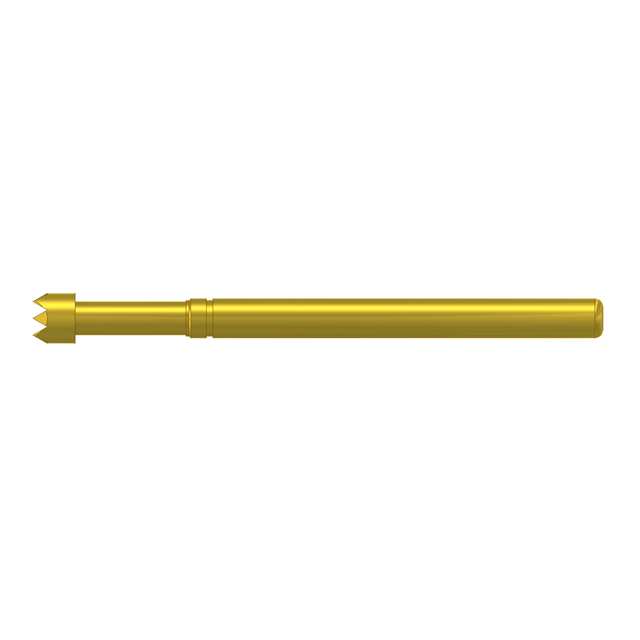

TOP156I32/250G

Active

Chip Shine / CSRF

156MIL ICT PROBE

Search across all available documentation for this part.

Active

Chip Shine / CSRF

156MIL ICT PROBE

Technical Specifications

Parameters and characteristics for this part

Specification	TOP156I32/250G

Current Rating (Amps)	5 A
Length - Overall	1.33 in
Length - Overall	33.78 mm
Length - Tip [x]	0.348 "
Length - Tip [x]	8.85 mm
Material - Body	Phosphor Copper, Gold Plated
Material - Tip	Beryllium Copper, Steel, Gold Plated
Tip Type	Spring Tip - Serrated Head
Tip Type [diameter]	3.2 mm
Tip Type [diameter]	0.126 in

Part	Material - Body	Length - Tip [x]	Length - Tip [x]	Material - Tip	Tip Type	Tip Type [diameter]	Tip Type [diameter]	Length - Overall	Length - Overall	Current Rating (Amps)	Tip Type [diameter]
Chip Shine / CSRF TOP156F20/200G	Phosphor Copper Gold Plated	0.348 "	8.85 mm	Beryllium Copper Gold Plated Steel	Spring Tip - Needle Head	2 mm	0.079 in	1.33 in	33.78 mm	5 A
Chip Shine / CSRF TOP156I32/250G	Phosphor Copper Gold Plated	0.348 "	8.85 mm	Beryllium Copper Gold Plated Steel	Spring Tip - Serrated Head		3.2 mm	1.33 in	33.78 mm	5 A	0.126 in
Chip Shine / CSRF TOP156C40/200G	Phosphor Copper Gold Plated	0.348 "	8.85 mm	Beryllium Copper Gold Plated Steel	Spring Tip - Spherical Head		4 mm	1.33 in	33.78 mm	5 A	0.157 in
Chip Shine / CSRF TOP156M3/250G	Phosphor Copper Gold Plated	0.348 "	8.85 mm	Beryllium Copper Gold Plated Steel				1.33 in	33.78 mm	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 2.80

General part information

5 A Spring Tip - Serrated Head, 0.126" (3.20mm) Dia
