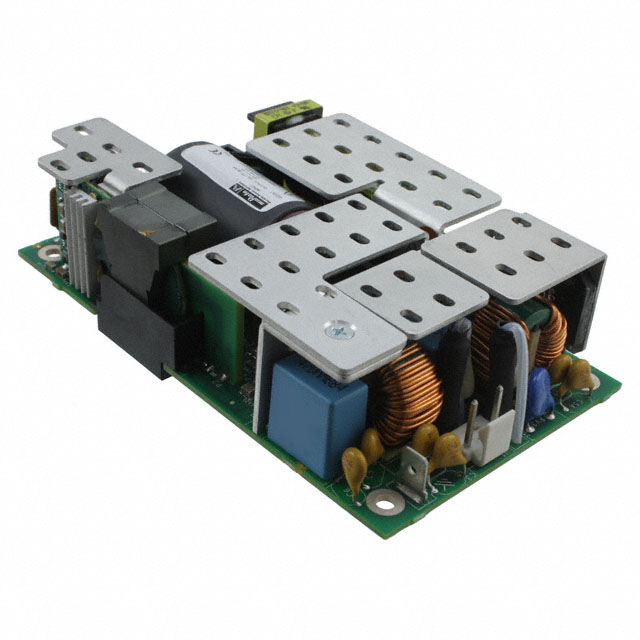

MVAC400-24AFD
LTBMurata Power Solutions Inc.
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 400W @ 250LFM, 250 W, 90V AC TO 264V AC
Deep-Dive with AI
Search across all available documentation for this part.
MVAC400-24AFD
LTBMurata Power Solutions Inc.
AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 400W @ 250LFM, 250 W, 90V AC TO 264V AC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MVAC400-24AFD |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CCC, CE, VDE, CB, cURus |
| Current - Output 1 | 16.7 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 2 A |
| Efficiency | 93 % |
| Features | Universal Input, Remote Sense, Hot Swappable, Remote On/Off, Standby Output, PFC, Load Sharing |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 250 W |
| Power (Watts) | 400 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 1.2 " |
| Size / Dimension [z] | 30 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MVAC400 Series
Open Frame AC DC Converters 3 Output 24V 12V 5V 90 ~ 264 VAC Input
