RF55-29L-T-00-50-G-SH

Active

Adam Tech

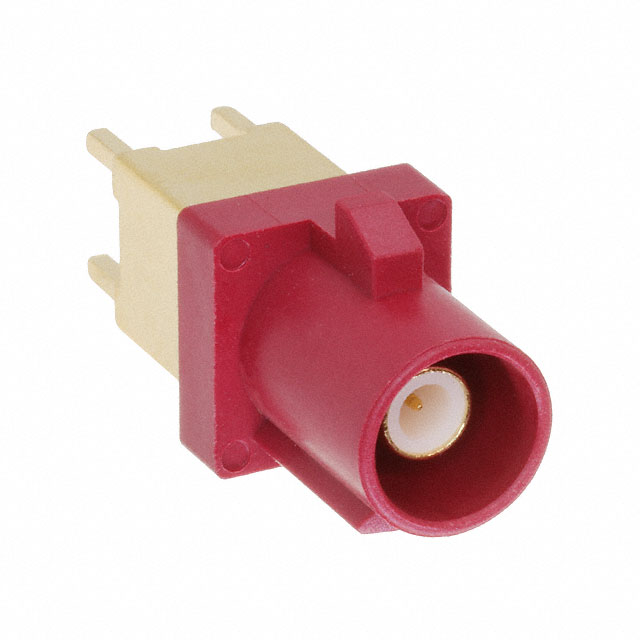

FAKRA PLUG SMB TYPE: STRAIGHT, F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

RF55-29L-T-00-50-G-SH

Active

Adam Tech

FAKRA PLUG SMB TYPE: STRAIGHT, F

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF55-29L-T-00-50-G-SH

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code L
Frequency - Max [Max]	4 GHz
Housing Color	Carmine, Red
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

RF55-29 Series

Part	Center Contact Plating	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Shield Termination	Fastening Type	Center Contact Material	Connector Type	Body Material	Housing Color	Connector Style	Features	Mounting Type	Frequency - Max [Max]	Contact Termination	Dielectric Material	Body Finish
Adam Tech RF55-29E-T-00-50-G-SH	Gold	50 Ohms	85 °C	-40 °C	1	Solder	Locking Ramp	Brass	Male Pin Plug	Brass	Green	Fakra SMB	Code E	Through Hole	4 GHz	Solder	Polytetrafluoroethylene (PTFE)	Gold
Adam Tech RF55-29L-T-00-50-G-SH	Gold	50 Ohms	85 °C	-40 °C	1	Solder	Locking Ramp	Brass	Male Pin Plug	Brass	Carmine Red	Fakra SMB	Code L	Through Hole	4 GHz	Solder	Polytetrafluoroethylene (PTFE)	Gold
Adam Tech RF55-29H-T-00-50-G-SH	Gold	50 Ohms	85 °C	-40 °C	1	Solder	Locking Ramp	Brass	Male Pin Plug	Brass	Violet	Fakra SMB	Code H	Through Hole	4 GHz	Solder	Polytetrafluoroethylene (PTFE)	Gold
Adam Tech RF55-29G-T-00-50-G-SH	Gold	50 Ohms	85 °C	-40 °C	1	Solder	Locking Ramp	Brass	Male Pin Plug	Brass	Gray	Fakra SMB	Code G	Through Hole	4 GHz	Solder	Polytetrafluoroethylene (PTFE)	Gold
Adam Tech RF55-29B-T-00-50-G-SH	Gold	50 Ohms	85 °C	-40 °C	1	Solder	Locking Ramp	Brass	Male Pin Plug	Brass	White	Fakra SMB	Code B	Through Hole	4 GHz	Solder	Polytetrafluoroethylene (PTFE)	Gold
Adam Tech RF55-29D-T-00-50-G-SH	Gold	50 Ohms	85 °C	-40 °C	1	Solder	Locking Ramp	Brass	Male Pin Plug	Brass	Bordeaux Violet	Fakra SMB	Code D	Through Hole	4 GHz	Solder	Polytetrafluoroethylene (PTFE)	Gold
Adam Tech RF55-29Z-T-00-50-G-SH	Gold	50 Ohms	85 °C	-40 °C	1	Solder	Locking Ramp	Brass	Male Pin Plug	Brass		Fakra SMB	Code Z	Through Hole	4 GHz	Solder	Polytetrafluoroethylene (PTFE)	Gold
