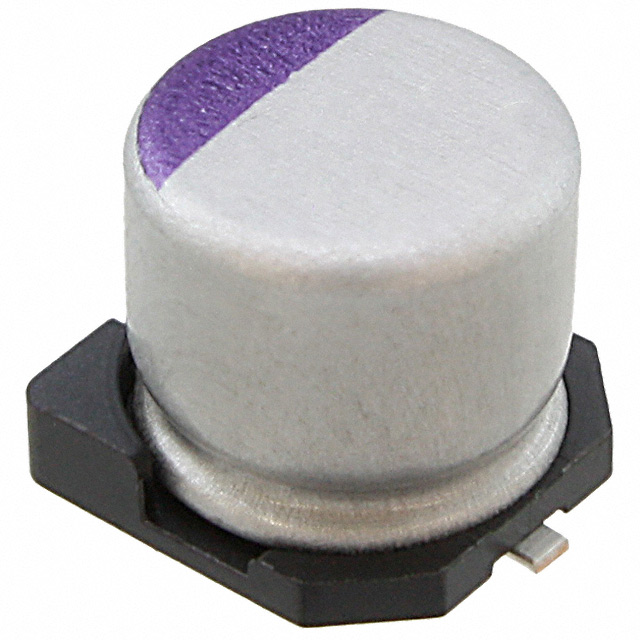

25SVPF100M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 100UF 20% 25V SMD

Deep-Dive with AI

Search across all available documentation for this part.

25SVPF100M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 100UF 20% 25V SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	25SVPF100M

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	24 mOhms
Height - Seated (Max) [Max]	7 mm
Height - Seated (Max) [Max]	0.276 "
Lifetime @ Temp.	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	3.2 A
Ripple Current @ Low Frequency	160 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Surface Mount Land Size [x]	0.327 "
Surface Mount Land Size [x]	8.3 mm
Surface Mount Land Size [y]	8.3 mm
Surface Mount Land Size [y]	0.327 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	25 VDC

25SVPF Series

Part	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Type	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Voltage - Rated	Ripple Current @ Low Frequency	Mounting Type	ESR (Equivalent Series Resistance)	Package / Case	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 25SVPF180M	5000 Hrs	0.315 "	8 mm	180 çF	General Purpose	12 mm	0.472 "	4.65 A	Polymer	105 ░C	-55 °C	0.327 "	8.3 mm	0.327 in	8.3 mm	25 VDC	232.5 mA	Surface Mount	16 mOhm	Radial Can - SMD	20 %
Panasonic Industrial Automation Sales 25SVPF100M	5000 Hrs	0.315 "	8 mm	100 µF	General Purpose			3.2 A	Polymer	105 ░C	-55 °C	0.327 "	8.3 mm	0.327 in	8.3 mm	25 VDC	160 mA	Surface Mount	24 mOhms	Radial Can - SMD	20 %	7 mm	0.276 "
Panasonic Industrial Automation Sales 25SVPF82M	5000 Hrs	0.315 "	8 mm	82 µF	General Purpose			3 A	Polymer	105 ░C	-55 °C	0.327 "	8.3 mm	0.327 in	8.3 mm	25 VDC	150 mA	Surface Mount	28 mOhm	Radial Can - SMD	20 %	7 mm	0.276 "
Panasonic Industrial Automation Sales 25SVPF47M	5000 Hrs	0.248 in	6.3 mm	47 µF	General Purpose			2.8 A	Polymer	105 ░C	-55 °C	0.26 in	6.6 mm	0.26 in	6.6 mm	25 VDC	140 mA	Surface Mount	30 mOhms	Radial Can - SMD	20 %	6 mm	0.236 in
Panasonic Industrial Automation Sales 25SVPF56M	5000 Hrs	0.248 in	6.3 mm	56 µF	General Purpose			2.8 A	Polymer	105 ░C	-55 °C	0.26 in	6.6 mm	0.26 in	6.6 mm	25 VDC	140 mA	Surface Mount	30 mOhms	Radial Can - SMD	20 %	6 mm	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.37
		10	$ 0.95
		50	$ 0.86
		100	$ 0.78
		500	$ 0.62
	Digi-Reel®	1	$ 1.37
		10	$ 0.95
		50	$ 0.86
		100	$ 0.78
		500	$ 0.62
	Tape & Reel (TR)	1000	$ 0.52
		2000	$ 0.48
		3000	$ 0.48
		5000	$ 0.47
		7000	$ 0.47
		10000	$ 0.47

Description

General part information

25SVPF Series

100 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 5000 Hrs @ 105°C
