83172C

Active

Murata Power Solutions Inc.

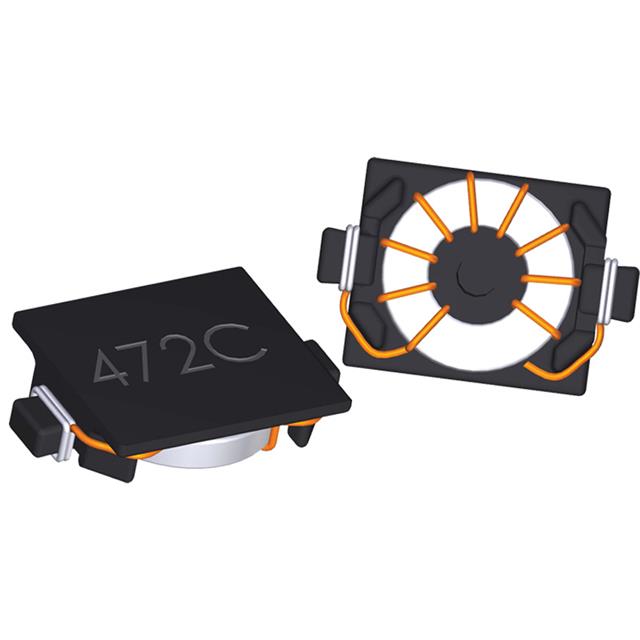

TOROIDAL INDUCTOR, 8300 SERIES, 1.7 ΜH, 1.55 A, 0.073 OHM, ± 20%, 5.85 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

83172C

Active

Murata Power Solutions Inc.

TOROIDAL INDUCTOR, 8300 SERIES, 1.7 ΜH, 1.55 A, 0.073 OHM, ± 20%, 5.85 MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83172C

Current - Saturation (Isat)	2.71 A
Current Rating (Amps)	1.55 A
Height - Seated (Max) [Max]	0.071 "
Height - Seated (Max) [Max]	1.8 mm
Inductance	1.7 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	7.8 mm
Size / Dimension [x]	0.307 in
Size / Dimension [y]	5.2 mm
Size / Dimension [y]	0.205 "
Tolerance	20 %
Type	Toroidal

83 Series

Part	Tolerance	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	DC Resistance (DCR) [Max]	Current Rating (Amps)	Type	Shielding	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Murata Power Solutions Inc. 83473C	20 %	47 µH	85 °C	-40 °C	480 mA	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard	710 mOhm	350 mA	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm
Murata Power Solutions Inc. 83852C	20 %	8.5 µH	85 °C	-40 °C	1.15 A	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard		0.85 A	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm	167 mOhm
Murata Power Solutions Inc. 83332C	20 %	3.3 µH	85 °C	-40 °C	1.79 A	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard		1.35 A	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm
Murata Power Solutions Inc. 83103C	20 %	10 µH	85 °C	-40 °C	1.04 A	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard	185 mOhm	750 mA	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm
Murata Power Solutions Inc. 83172C	20 %	1.7 µH	85 °C	-40 °C	2.71 A	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard		1.55 A	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm
Murata Power Solutions Inc. 83122C	20 %	1.2 µH	85 °C	-40 °C	3.36 A	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard	65 mOhm	1.7 A	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm
Murata Power Solutions Inc. 83682C	20 %	6.8 µH	85 °C	-40 °C	1.3 A	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard	150 mOhm	950 mA	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm
Murata Power Solutions Inc. 83104C	20 %	100 µH	85 °C	-40 °C	340 mA	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard	1.32 Ohm	0.24 A	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm
Murata Power Solutions Inc. 83683C	20 %	68 µH	85 °C	-40 °C	410 mA	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard	850 mOhm	300 mA	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm
Murata Power Solutions Inc. 83823C	20 %	82 µH	85 °C	-40 °C	370 mA	7.8 mm	5.2 mm	0.307 in	0.205 "	Nonstandard	1.25 Ohm	270 mA	Toroidal	Unshielded	Surface Mount	0.071 "	1.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.12
	Digi-Reel®	1	$ 2.12
	Tape & Reel (TR)	2200	$ 1.06
Newark	Each (Supplied on Cut Tape)	250	$ 1.30

Description

General part information

83 Series

1.7 µH Unshielded Toroidal Inductor 1.55 A 73mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
