XB1117K12BFR-G

Obsolete

Torex Semiconductor Ltd

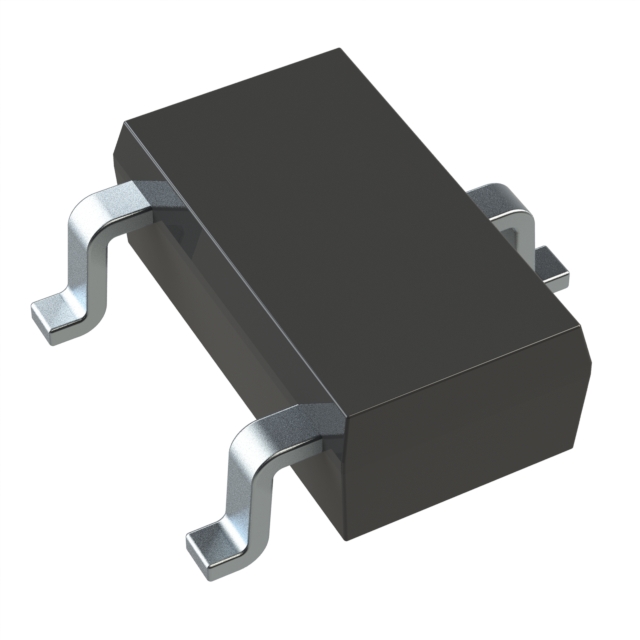

IC REG LINEAR POS ADJ 1A SOT223

Search across all available documentation for this part.

Obsolete

Torex Semiconductor Ltd

IC REG LINEAR POS ADJ 1A SOT223

Technical Specifications

Parameters and characteristics for this part

Specification	XB1117K12BFR-G

Current - Output	1 A
Current - Quiescent (Iq)	10 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	TO-261AA, TO-261-4
Protection Features	Over Current, Over Temperature
Supplier Device Package	SOT-223
Voltage - Input (Max) [Max]	7 V
Voltage - Output (Max)	5.6 V
Voltage - Output (Min/Fixed)	1.25 V
Voltage Dropout (Max) [Max]	1.4 V

Part	Output Configuration	Protection Features	Supplier Device Package	Voltage - Input (Max) [Max]	Current - Output	Mounting Type	Output Type	Package / Case	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Voltage Dropout (Max) [Max]	Number of Regulators	Voltage - Output (Max)	Output Type	Current - Quiescent (Iq)
Torex Semiconductor Ltd XB1117P331FR-G	Positive	Over Current Over Temperature	SOT-223	7 V	1 A	Surface Mount	1.81 mOhm	TO-261-4 TO-261AA	3.3 V	70 °C	1.4 V	1
Torex Semiconductor Ltd XB1117K12BFR-G	Positive	Over Current Over Temperature	SOT-223	7 V	1 A	Surface Mount		TO-261-4 TO-261AA	1.25 V	70 °C	1.4 V	1	5.6 V	Adjustable	10 mA
Torex Semiconductor Ltd XB1117P501FR-G	Positive	Over Current Over Temperature	SOT-223	10 V	1 A	Surface Mount	1.81 mOhm	TO-261-4 TO-261AA	5 V	70 °C	1.4 V	1
