TO-16-050

Active

Bivar Inc.

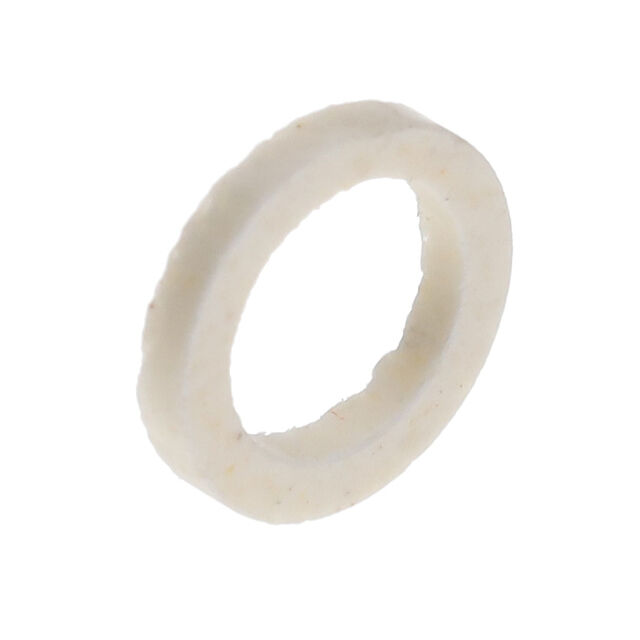

DISS-O-PAD, TO-16, ROUND, 0.205 OD, 0.125, ID, 0.05 THICK, WAX / BAG

Search across all available documentation for this part.

Active

Bivar Inc.

DISS-O-PAD, TO-16, ROUND, 0.205 OD, 0.125, ID, 0.05 THICK, WAX / BAG

Technical Specifications

Parameters and characteristics for this part

Specification	TO-16-050

Color	Natural
Diameter - Inside [diameter]	0.125 in
Diameter - Inside [diameter]	0.125 in
Diameter - Inside [diameter]	3.18 mm
Diameter - Outside [diameter]	0.205 "
Diameter - Outside [diameter]	5.21 mm
Features	Wash Away
Height [z]	1.28 mm
Height [z]	0.05 "
Length [x]	0.05 in
Length [x]	1.27 mm
Shape	Tubular
Type	Spacer
Usage	General Purpose - Axial, Radial

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Usage	Type	Length [x]	Length [x]	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Height [z]	Height [z]	Shape	Length	Length
Bivar Inc. TO-16-050	0.125 in	0.125 in	3.18 mm	General Purpose - Axial Radial	Spacer	0.05 in	1.27 mm	Natural	0.205 "	5.21 mm	Wash Away	1.28 mm	0.05 "	Tubular
Bivar Inc. TO-16-200	0.125 in	0.125 in	3.18 mm	General Purpose - Axial Radial	Spacer			Natural	0.205 "	5.21 mm	Wash Away	5.08 mm	0.2 in	Tubular
Bivar Inc. TO-16-040	0.125 in	0.125 in	3.18 mm	General Purpose - Axial Radial	Spacer			Natural	0.205 "	5.21 mm	Wash Away	1 mm	0.039 in	Tubular	1 mm	0.039 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Component Spacer General Purpose - Axial, Radial Tubular 0.050" (1.28mm) Natural
