MGJ6D12H24MC-R7

Active

Murata Power Solutions Inc.

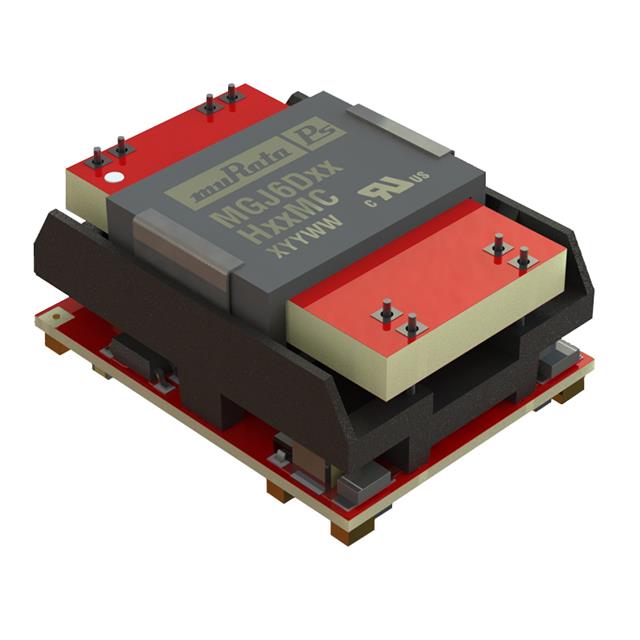

DC DC CONVERTER 24V 24V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

MGJ6D12H24MC-R7

Active

Murata Power Solutions Inc.

DC DC CONVERTER 24V 24V 6W

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MGJ6D12H24MC-R7

Applications	ITE (Commercial), Medical
Current - Output (Max)	125 mA
Current - Output (Max)	125 mA
Efficiency	84 %
Features	SCP, UVLO
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	7-SMD Module
Power (Watts)	6 W
Size / Dimension [x]	29.5 mm
Size / Dimension [x]	1.16 in
Size / Dimension [y]	22.6 mm
Size / Dimension [y]	0.89 in
Size / Dimension [z]	0.56 "
Size / Dimension [z]	14.1 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	5.2 kV
Voltage - Output 1	24 V
Voltage - Output 2	24 V

MGJ6D12 Series

Part	Mounting Type	Number of Outputs	Type	Package / Case	Efficiency	Power (Watts)	Voltage - Output 1	Applications	Voltage - Output 2	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. MGJ6D121505SC	Through Hole	2	Isolated Module	8-SIP Module	80 %	6 W	15 V	ITE (Commercial) Medical	-5 V	SCP UVLO	-40 °C	105 ░C	5.2 kV	9 V	18 V	300 mA	11 mm	0.43 in	28.1 mm	1.54 in	39 mm	1.11 in
Murata Power Solutions Inc. MGJ6D121505WMC-R7	Surface Mount	2	Isolated Module	7-SMD Module	80 %	6 W	15 V	ITE (Commercial)	-5 V	Remote On/Off	-40 °C	105 C	10.2 kV	9 V	18 V	300 mA	27.8 mm	1.09 in	9.2 mm	1.81 in	46 mm	0.36 in
Murata Power Solutions Inc. MGJ6D121510WMC-R7	Surface Mount	2	Isolated Module	7-SMD Module	80 %	6 W	15 V	ITE (Commercial)	-10 V	Remote On/Off	-40 °C	105 C	10.2 kV	9 V	18 V		27.8 mm	1.09 in	9.2 mm	1.81 in	46 mm	0.36 in	240 mA	240 mA
Murata Power Solutions Inc. MGJ6D12H24MC-R7	Surface Mount	2	Isolated Module	7-SMD Module	84 %	6 W	24 V	ITE (Commercial) Medical	24 V	SCP UVLO	-40 °C	105 ░C	5.2 kV	9 V	18 V		22.6 mm	0.89 in	14.1 mm	1.16 in	29.5 mm	0.56 "			125 mA	125 mA
Murata Power Solutions Inc. MGJ6D121510WMC-R13	Surface Mount	2	Isolated Module	7-SMD Module	80 %	6 W	15 V	ITE (Commercial)	-10 V	Remote On/Off	-40 °C	105 C	10.2 kV	9 V	18 V		27.8 mm	1.09 in	9.2 mm	1.81 in	46 mm	0.36 in	240 mA	240 mA
Murata Power Solutions Inc. MGJ6D122005LMC-R7	Surface Mount	2	Isolated Module	7-SMD Module	79 %	6 W	20 V	ITE (Commercial) Medical	-5 V	SCP UVLO	-40 °C	105 ░C	5.2 kV	9 V	18 V		27.8 mm	1.09 in	9.4 mm	1.57 in	40 mm	0.37 in	240 mA	240 mA
Murata Power Solutions Inc. MGJ6D122005DC	Through Hole	2	Isolated Module	7-DIP Module	80 %	6 W	20 V	ITE (Commercial) Medical	-5 V	SCP UVLO	-40 °C	105 ░C	5.2 kV	9 V	18 V		27.8 mm	1.09 in	9.8 mm	1.79 "	45.5 mm	0.39 in	240 mA	240 mA
Murata Power Solutions Inc. MGJ6D121505DC	Through Hole	2	Isolated Module	7-DIP Module	80 %	6 W	15 V	ITE (Commercial) Medical	-5 V	SCP UVLO	-40 °C	105 ░C	5.2 kV	9 V	18 V	300 mA	27.8 mm	1.09 in	9.8 mm	1.79 "	45.5 mm	0.39 in
Murata Power Solutions Inc. MGJ6D121510DC	Through Hole	2	Isolated Module	7-DIP Module	80 %	6 W	15 V	ITE (Commercial) Medical	-10 V	SCP UVLO	-40 °C	105 ░C	5.2 kV	9 V	18 V		27.8 mm	1.09 in	9.8 mm	1.79 "	45.5 mm	0.39 in	240 mA	240 mA
Murata Power Solutions Inc. MGJ6D121505LMC-R13	Surface Mount	2	Isolated Module	7-SMD Module	79 %	6 W	15 V	ITE (Commercial) Medical	-5 V	SCP UVLO	-40 °C	105 ░C	5.2 kV	9 V	18 V	300 mA	27.8 mm	1.09 in	9.4 mm	1.57 in	40 mm	0.37 in
