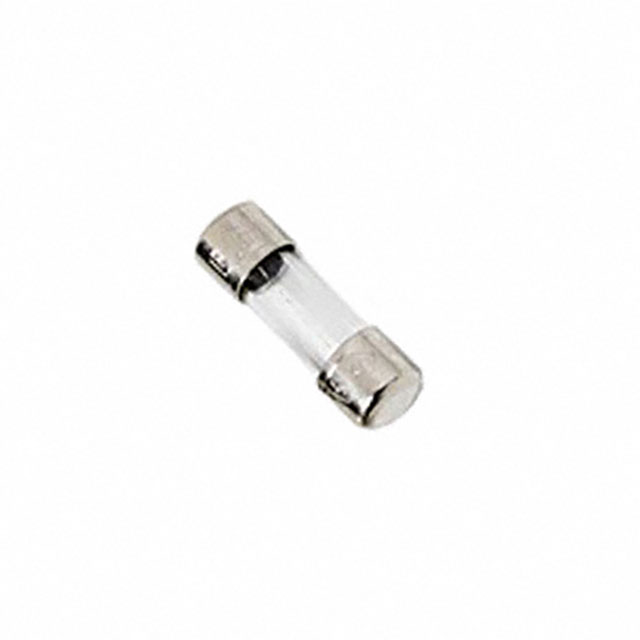

020802.5MXP
ActiveLittelfuse/Commercial Vehicle Products
FUSE 350V FA PT 2AG PB-FREE 2.5A
Deep-Dive with AI
Search across all available documentation for this part.
020802.5MXP
ActiveLittelfuse/Commercial Vehicle Products
FUSE 350V FA PT 2AG PB-FREE 2.5A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 020802.5MXP |
|---|---|
| Approval Agency | CE, cURus, PSE |
| Breaking Capacity @ Rated Voltage | 100 A |
| Current Rating (Amps) | 2.5 A |
| DC Cold Resistance | 0.0372 Ohms |
| Melting I²t | 2.68 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2AG |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 15 mm |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 0.185 in |
| Size / Dimension [diameter] | 4.7 mm |
| Size / Dimension [x] | 0.57 in |
| Size / Dimension [x] | 14.48 mm |
| Voltage Rating - AC | 350 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.29 | |
Description
General part information
020802.5 Series
Littelfuse 208 Series 350V fast-acting fuses are available in cartridge form or with axial leads. This series provides the same performance characteristics as its 3AG counterpart, while occupying one-third the space. Sleeved fuses are available.
