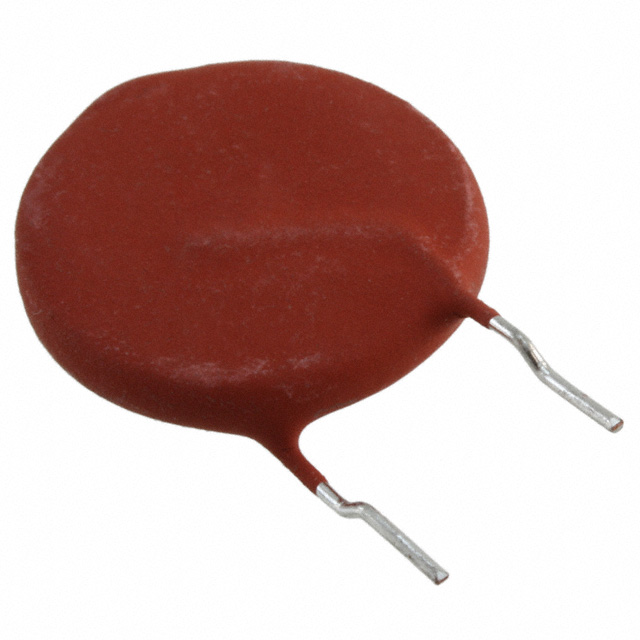

PTGL18AR6R0H8B72B0
ObsoleteMurata Power Solutions Inc.
PTC RESET FUSE 265V 380MA RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
PTGL18AR6R0H8B72B0
ObsoleteMurata Power Solutions Inc.
PTC RESET FUSE 265V 380MA RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTGL18AR6R0H8B72B0 |
|---|---|
| Approval Agency | UL |
| Current - Hold (Ih) (Max) [Max] | 380 mA |
| Current - Max [Max] | 4.1 A |
| Current - Trip (It) | 715 mA |
| Height - Seated (Max) [Max] | 0.965 " |
| Height - Seated (Max) [Max] | 24.5 mm |
| Lead Spacing | 7.5 mm |
| Lead Spacing | 0.295 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 6 Ohms |
| Size / Dimension [custom] | 0.217 in |
| Size / Dimension [custom] | 5.5 mm |
| Size / Dimension [diameter] | 18.5 mm |
| Size / Dimension [diameter] | 0.728 in |
| Type | Ceramic |
| Voltage - Max [Max] | 265 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PTGL18AR Series
Ceramic PTC Resettable Fuse 265V 380 mA Ih Through Hole Radial, Disc
Documents
Technical documentation and resources
No documents available
