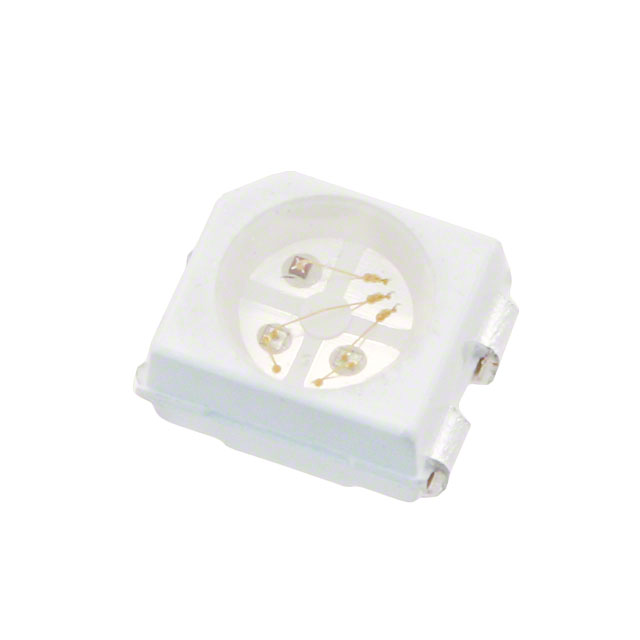

HSMF-A341-A00J1
ActiveBroadcom Limited
LED RGB CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
HSMF-A341-A00J1
ActiveBroadcom Limited
LED RGB CLEAR 4PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-A341-A00J1 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.2 mm |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 80 mcd |
| Millicandela Rating [custom] | 40 mcd |
| Millicandela Rating [custom] | 160 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V, 3.4 V, 1.9 V |
| Wavelength - Dominant | 525 nm, 470 nm, 626 nm |
| Wavelength - Peak [custom] | 523 nm |
| Wavelength - Peak [custom] | 468 nm |
| Wavelength - Peak [custom] | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.51 | |
| 10 | $ 1.81 | |||
| 100 | $ 1.40 | |||
| 500 | $ 1.22 | |||
| 1000 | $ 1.16 | |||
| Digi-Reel® | 1 | $ 2.51 | ||
| 10 | $ 1.81 | |||
| 100 | $ 1.40 | |||
| 500 | $ 1.22 | |||
| 1000 | $ 1.16 | |||
| Tape & Reel (TR) | 2000 | $ 1.11 | ||
| 4000 | $ 1.06 | |||
| 6000 | $ 1.04 | |||
Description
General part information
HSMF-A341 Series
Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.4V Green, 3.4V Blue 4-PLCC
Documents
Technical documentation and resources
No documents available
