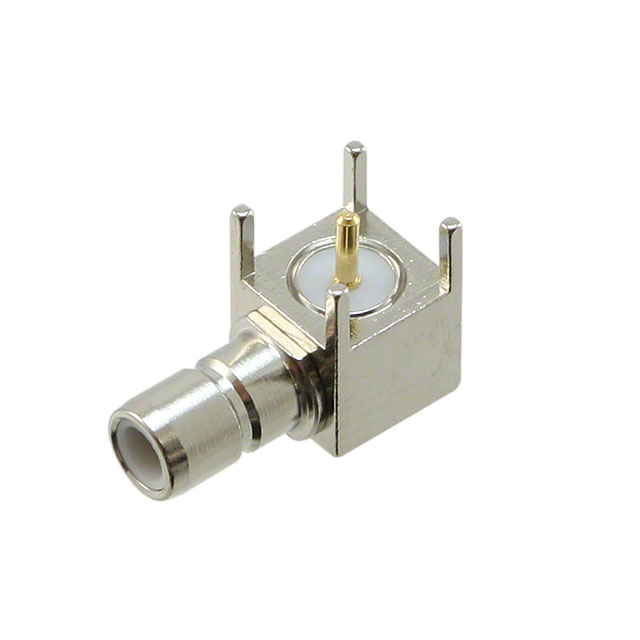

SMBS003D00

Active

JAE Electronics

CONN SMB RCPT R/A 50 OHM PCB

Search across all available documentation for this part.

Active

JAE Electronics

CONN SMB RCPT R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMBS003D00

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Dielectric Material	Connector Style	Shield Termination	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Contact Termination	Body Finish	Fastening Type	Impedance	Number of Ports	Mounting Type	Connector Type	Center Contact Plating	Frequency - Max [Max]	Body Material
JAE Electronics SMBS003D00	Polytetrafluoroethylene (PTFE)	SMB	Solder	Silver	85 °C	-40 °C	Brass	Solder	Nickel	Snap-On	50 Ohms	1	Through Hole Right Angle	Male Pin Receptacle	Gold	3 GHz	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	97	$ 4.97

General part information

SMB Connector Receptacle, Male Pin 50 Ohms Through Hole, Right Angle Solder
