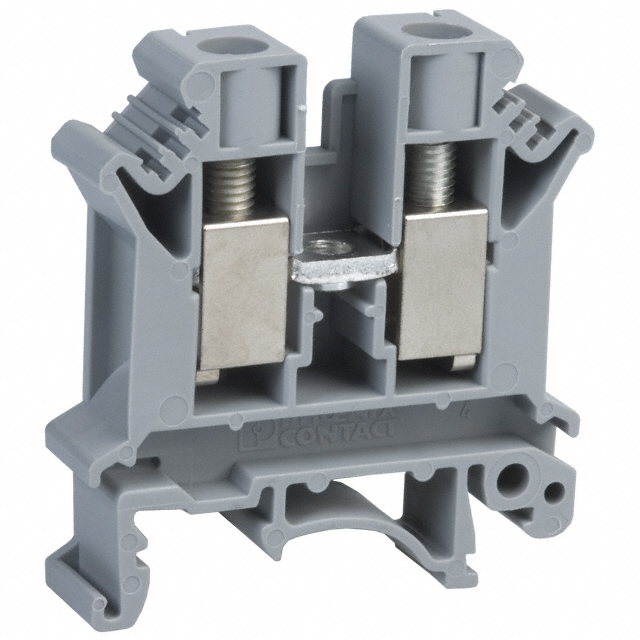

3005073

Active

Phoenix Contact

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², SCREW, 57 A

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 6 AWG, 16 MM², SCREW, 57 A

Technical Specifications

Parameters and characteristics for this part

Specification	3005073

Color	Gray
Current - IEC	57 A
Current - UL	65 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length	10 mm
Terminal - Width [y]	10.2 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	6 AWG
Wire Gauge or Range - mm² [Max]	16 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²

DIN Rail Terminal Blocks UK 2 5 N OG

Part	Voltage - UL [custom]	Stripping Length	Material - Insulation	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Terminal - Width [y]	Color	Material Flammability Rating	Termination Style	Type	Current - UL	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC	Current - IEC	Voltage - UL	Number of Positions
Phoenix Contact 3002416	150 V	8 mm	Nylon Polyamide (PA)	0.2 mm²	2.5 mm²	5.2 mm	Blue	UL94 V-0	Screw	Feed Through	20 A	1	30 AWG	12 AWG	400 V	24 A
Phoenix Contact 3005073		10 mm	Nylon Polyamide (PA)	0.5 mm²	16 mm²	10.2 mm	Gray	UL94 V-0	Screw	Feed Through	65 A	1	24 AWG	6 AWG	800 V	57 A	600 V	2
Phoenix Contact 3003017		8 mm	Nylon Polyamide (PA)	0.2 mm²	4 mm²	6.2 mm	Gray	UL94 V-2	Screw	Feed Through	20 A	1	28 AWG	12 AWG	800 V	32 A	600 V	2
Phoenix Contact 3026780	300 V	7 mm	Nylon Polyamide (PA)	0.2 mm²	4 mm²	5.2 mm		UL94 V-2	Screw	Feed Through	20 A	1	30 AWG	12 AWG	800 V	24 A		2
