Q-040340005.25M

Active

Amphenol Custom Cable

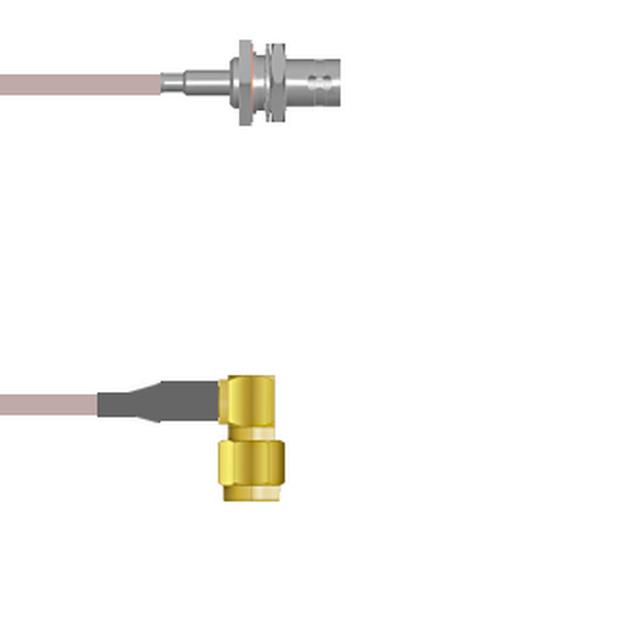

CBL ASSY BNC-SMA JACK-PLG 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-040340005.25M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-PLG 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-040340005.25M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-040340 Series

Part	2nd Connector Mounting Type	Color	Style	1st Connector	Frequency - Max [Max]	2nd Connector	1st Contact Gender	Cable Type	2nd Contact Gender	1st Connector Mounting Type	Overall Impedance	1st Connector Mounting Feature	Length	Length	Length	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-040340003060i	Free Hanging (In-Line)	Black	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-174	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	5 ft	1.5 m	5 '	Shielded
Amphenol Custom Cable Q-040340005002M	Free Hanging (In-Line)	Copper	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-316	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	6.6 ft	2 m	78.7 in	Shielded
Amphenol Custom Cable Q-040340003003M	Free Hanging (In-Line)	Black	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-174	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	9.8 '	3 m	118.1 in	Shielded
Amphenol Custom Cable Q-040340003003i	Free Hanging (In-Line)	Black	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-174	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut		76.2 mm	3 in	Shielded
Amphenol Custom Cable Q-040340003084i	Free Hanging (In-Line)	Black	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-174	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	7 ft	2.1 m	84 in	Shielded
Amphenol Custom Cable Q-040340005006i	Free Hanging (In-Line)	Copper	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-316	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut		152.4 mm	6 in	Shielded
Amphenol Custom Cable Q-040340003.25M	Free Hanging (In-Line)	Black	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-174	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut				Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-040340005.25M	Free Hanging (In-Line)	Copper	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-316	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut				Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-0403400050.5M	Free Hanging (In-Line)	Copper	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-316	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut		50 cm	19.69 "	Shielded
Amphenol Custom Cable Q-040340003.75M	Free Hanging (In-Line)	Black	BNC to SMA	BNC Jack	4 GHz	SMA Plug Right Angle	Female	RG-174	Male	Panel Mount	50 Ohms	Bulkhead - Front Side Nut		750 mm	29.53 "	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.05
		25	$ 94.17
		50	$ 92.29
		100	$ 90.41
		250	$ 88.53

Description

General part information

Q-040340 Series

Cable Assembly Coaxial BNC to SMA RG-316 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
