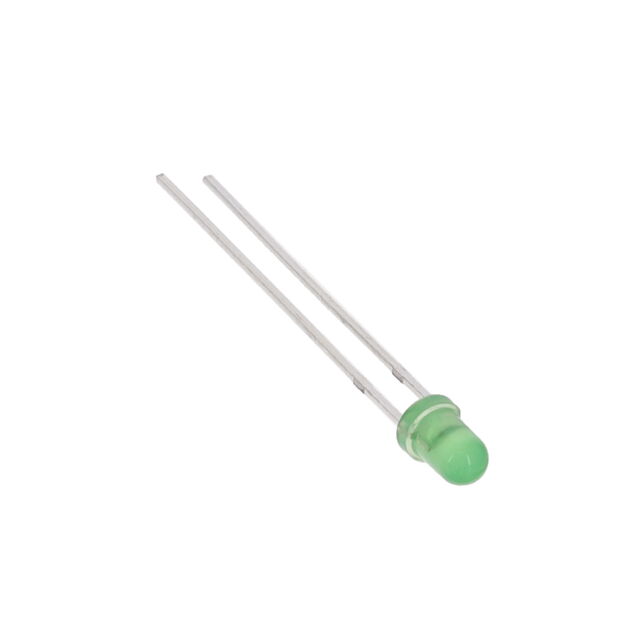

3GDL-F
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, GREEN, 568NM, 4MCD, DIFFUSED LENS, 35 DEG VIEWING ANGLE, LOW CURRENT, FLANGED / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3GDL-F
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, GREEN, 568NM, 4MCD, DIFFUSED LENS, 35 DEG VIEWING ANGLE, LOW CURRENT, FLANGED / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3GDL-F |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] | 5.3 mm |
| Lens Color | Green |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 4 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 568 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3GDL-F Series
Green LED Indication - Discrete 2.1V Radial
