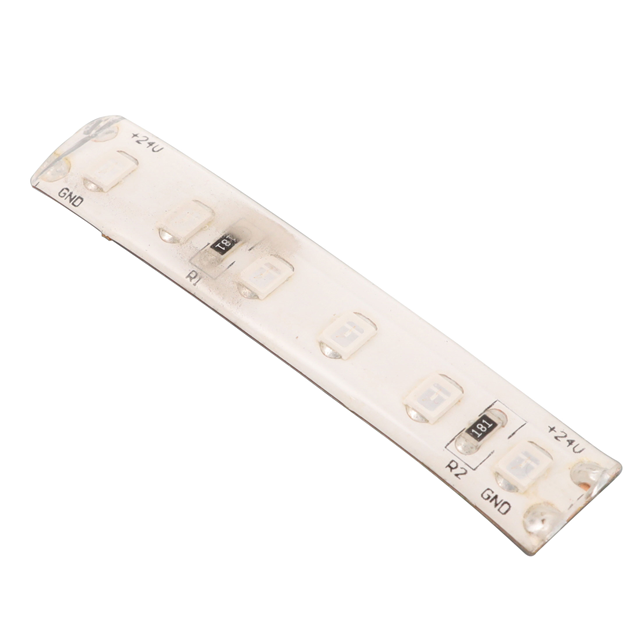

LED MOD AB-FC BLUE LNR STRIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-FC024BL-19700-XA1
ActiveAmerican Bright Optoelectronics Corporation
LED MOD AB-FC BLUE LNR STRIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-FC024BL-19700-XA1 |
|---|---|
| Color | Blue |
| Configuration | Linear Light Strip, Flexible |
| Current - Test | 660 mA |
| Features | IP65 |
| Height [z] | 2.5 mm |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test | 90 lm/W |
| Luminous Flux @ Current/Temperature | 168 lm |
| Size / Dimension [x] | 5000 mm |
| Type | LED Module |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 24 V |
| Wavelength | 470 nm |
| Wavelength [Max] | 475 nm |
| Wavelength [Min] | 465 nm |
AB-FC024 Series
| Part | Features | Lens Type | Size / Dimension [x] | Configuration | Lumens/Watt @ Current - Test | Viewing Angle | Wavelength [Min] | Wavelength | Wavelength [Max] | Color | Voltage - Forward (Vf) (Typ) | Luminous Flux @ Current/Temperature | Height [z] | Type | Current - Test | Size / Dimension [y] | Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Bright Optoelectronics Corporation | IP65 | Flat | 5000 mm | Flexible Linear Light Strip | 90 lm/W | 120 ° | 465 nm | 470 nm | 475 nm | Blue | 24 V | 168 lm | 2.5 mm | LED Module | 660 mA | ||
American Bright Optoelectronics Corporation | IP65 | Flat | 5000 mm | Flexible Linear Light Strip | 1.5 lm/W | 120 ° | 395 nm | 398 nm | 400 nm | UltraViolet | 24 V | 15 lm | LED Module | 830 mA | 10 mm | 4.16 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.57 | |||
| Tape & Reel (TR) | 100 | $ 0.42 | ||
| 500 | $ 0.40 | |||
Description
General part information
AB-FC024 Series
LED Lighting COBs Engines Modules LED Module AB-FC Blue Linear Light Strip, Flexible
