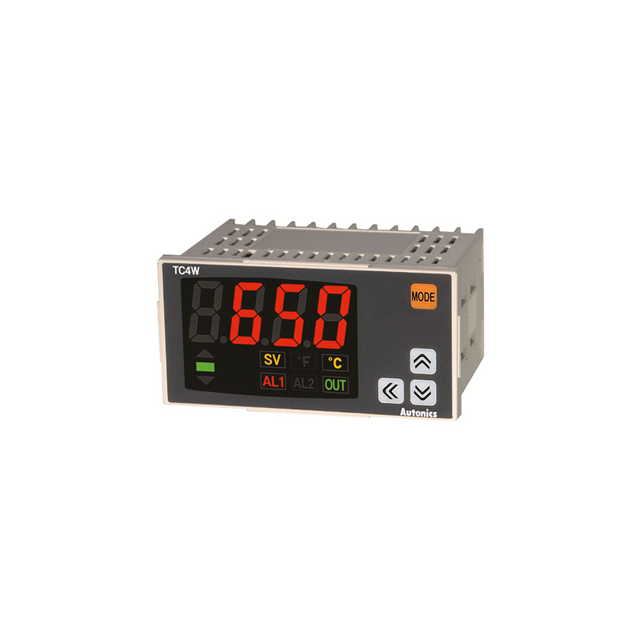

TC4W-24R

Active

AUTONICS

TEMPERATURE CONTROLLER, PID, DIN 96X48, ALARM 1 + 2, RELAY, SSRP OUTPUT, 100 TO 240 VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

TC4W-24R

Active

AUTONICS

TEMPERATURE CONTROLLER, PID, DIN 96X48, ALARM 1 + 2, RELAY, SSRP OUTPUT, 100 TO 240 VAC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TC4W-24R

Control Method	On/Off, Proportional (PID)
Display Characters - Height [custom]	0.787 in
Display Characters - Height [custom]	20 mm
Display Type	LED - Red Characters
Input Range [Max]	2192 °F
Input Range [Min]	-58 °F
Number of Characters Per Row	4
Output Type	Relay, Solid State
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	Temperature Controller (RTD, Type J, K, L)
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

TC4W Series

Part	Control Method	Display Characters - Height [custom]	Display Characters - Height [custom]	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Type	Input Range [Min]	Input Range [Max]	Output Type
AUTONICS TC4W-N4N	On/Off Proportional (PID)	0.787 in	20 mm	4	100 VAC	240 VAC	Screw Terminal	92 mm	45 mm	LED - Red Characters	Temperature Controller (RTD Type J K L)	-58 °F	2192 °F
AUTONICS TC4W-14R	On/Off Proportional (PID)	0.787 in	20 mm	4	100 VAC	240 VAC	Screw Terminal	92 mm	45 mm	LED - Red Characters	Temperature Controller (RTD Type J K L)	-58 °F	2192 °F	Relay Solid State
AUTONICS TC4W-24R	On/Off Proportional (PID)	0.787 in	20 mm	4	100 VAC	240 VAC	Screw Terminal	92 mm	45 mm	LED - Red Characters	Temperature Controller (RTD Type J K L)	-58 °F	2192 °F	Relay Solid State
AUTONICS TC4W-N4R	On/Off Proportional (PID)	0.787 in	20 mm	4	100 VAC	240 VAC	Screw Terminal	92 mm	45 mm	LED - Red Characters	Temperature Controller (RTD Type J K L)	-58 °F	2192 °F	Relay Solid State

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 122.00
Newark	Each	1	$ 122.00

Description

General part information

TC4W Series

The TC4W-24R from Autonics is a 4-digit single display economical PID Temperature Controller. The TC series is one of the most temperature controlling solution with essential functions and improved performance
