BHR-40-VUA

Active

Adam Tech

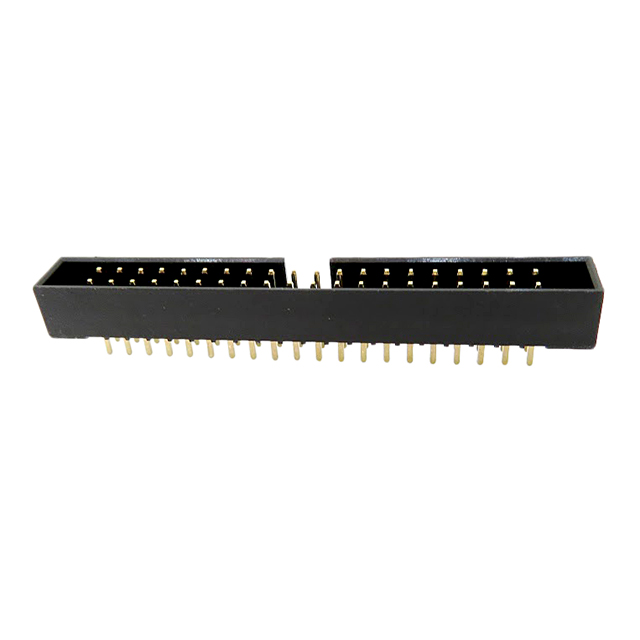

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

BHR-40-VUA

Active

Adam Tech

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-40-VUA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.346 in
Insulation Height [z]	8.8 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

BHR-40 Series

Part	Number of Rows	Insulation Material	Contact Finish Thickness - Post	Voltage Rating	Fastening Type	Contact Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Number of Positions Loaded	Current Rating (Amps)	Features	Mounting Type	Contact Shape	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Post	Style	Termination	Shrouding	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post
Adam Tech BHR-40-HUA-ML	2	Polybutylene Terephthalate (PBT) Glass Filled	Flash	350 VAC	Latch Lock/Eject Hooks Long	Male Pin	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	40	Gold	All	3 A	Keying Slot	Through Hole Right Angle	Square	9 mm	0.354 in	Flash	Header	UL94 V-0	-40 °C	105 ░C	Brass	Gold	Board to Board Cable	Solder	Shrouded - 4 Wall	3.2 mm	0.126 in
Adam Tech BHR-40-HUA	2	Polybutylene Terephthalate (PBT) Glass Filled	Flash	250 VAC	Push-Pull	Male Pin	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	40	Gold	All		Keying Slot	Through Hole Right Angle	Square			Flash	Header	UL94 V-0	-40 °C	105 ░C	Brass	Gold	Board to Board Cable	Solder	Shrouded - 4 Wall		0.134 in	3.4 mm	0.356 in	9.05 mm
Adam Tech BHR-40-VUA-ML	2	Polybutylene Terephthalate (PBT) Glass Filled	Flash	250 VAC	Push-Pull	Male Pin	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	40	Gold	All	3 A	Keying Slot	Through Hole	Square	9.1 mm	0.358 in	Flash	Header	UL94 V-0	-40 °C	105 ░C	Brass	Gold	Board to Board Cable	Solder	Shrouded - 4 Wall	3.3 mm					0.13 in
Adam Tech BHR-40-VUA	2	Polybutylene Terephthalate (PBT)	Flash	250 VAC	Push-Pull	Male Pin	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	40	Gold	All	3 A	Keying Slot	Through Hole	Square			Flash	Header	UL94 V-0	-55 °C	105 ░C	Brass	Gold	Board to Board Cable	Solder	Shrouded - 4 Wall	3.3 mm			0.346 in	8.8 mm	0.13 in
Adam Tech BHR-40-VSG-SMT	2	Thermoplastic		250 VAC	Push-Pull	Male Pin	Black	2.54 mm	0.1 in	0.1 in	2.54 mm	40	Gold	All	3 A	Keying Slot	Surface Mount	Square			Flash	Header	UL94 V-0	-40 °C	105 ░C	Brass	Tin	Board to Board Cable	Solder	Shrouded - 4 Wall				0.413 in	10.49 mm
