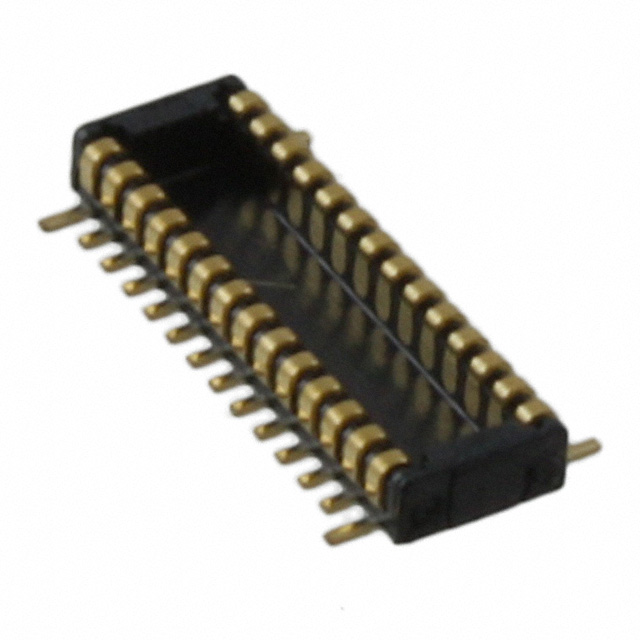

WP3-P024VA1-R500

Unknown

JAE Electronics

CONN PLUG 24POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

WP3-P024VA1-R500

Unknown

JAE Electronics

CONN PLUG 24POS SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP3-P024VA1-R500

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

WP3-P0 Series

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Number of Positions	Connector Type	Number of Positions
JAE Electronics WP3-P042VA1-R6000	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	42	Outer Shroud Contacts Plug
JAE Electronics WP3-P030VA1-R6000	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	30	Outer Shroud Contacts Plug
JAE Electronics WP3-P030VA1-C100	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	30	Outer Shroud Contacts Plug
JAE Electronics WP3-P022VA1-R6000	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	22 positions	Outer Shroud Contacts Plug
JAE Electronics WP3-P024VA1-R500	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	24	Outer Shroud Contacts Plug
JAE Electronics WP3-P042VA1-R500	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	42	Outer Shroud Contacts Plug
JAE Electronics WP3-P070VA1-R6000	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	70	Outer Shroud Contacts Plug
JAE Electronics WP3-P016VA1-R6000	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2		Outer Shroud Contacts Plug	16
JAE Electronics WP3-P064VA1-R6000	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	64	Outer Shroud Contacts Plug
JAE Electronics WP3-P040VA1-R6000	Solder Retention	4 Áin	0.1 Ám	1 mm	0.84 mm	0.033 "	Gold	0.016 in	0.4 mm	Surface Mount	2	40	Outer Shroud Contacts Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

WP3-P0 Series

24 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

No documents available
