Q-0701O000R001M

Active

Amphenol Custom Cable

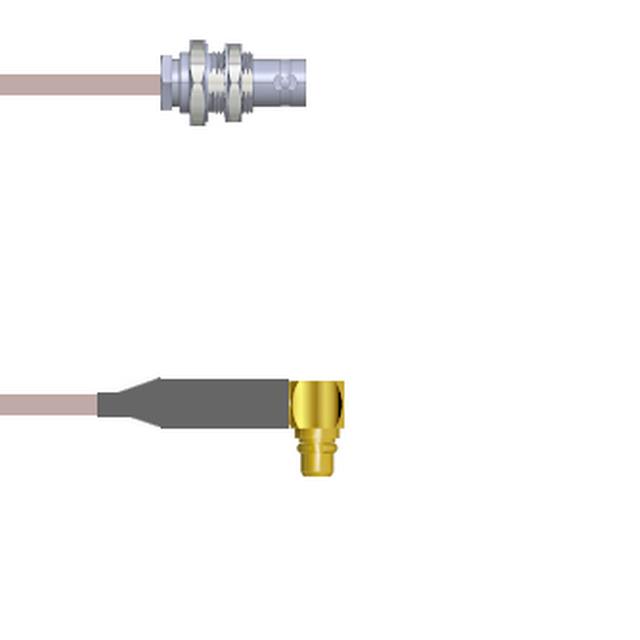

CBL ASSY BNC-MMCX JACK-PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0701O000R001M

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0701O000R001M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0701O0 Series

Part	2nd Contact Gender	Features	1st Connector	1st Contact Gender	Length	Length	Length	2nd Connector	Overall Impedance	Color	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type	Style	1st Connector Mounting Feature	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-0701O000R108i	Male	Shielded	BNC Jack	Female	2.7 m	9 ft	108 in	MMCX Plug Right Angle	50 Ohms	Copper	Free Hanging (In-Line)	Panel Mount	RG-316 DB	BNC to MMCX	Bulkhead - Front Side Nut	2 GHz
Amphenol Custom Cable Q-0701O000R002M	Male	Shielded	BNC Jack	Female	2 m	6.6 ft	78.7 in	MMCX Plug Right Angle	50 Ohms	Copper	Free Hanging (In-Line)	Panel Mount	RG-316 DB	BNC to MMCX	Bulkhead - Front Side Nut	2 GHz
Amphenol Custom Cable Q-0701O000R003i	Male	Shielded	BNC Jack	Female	76.2 mm		3 in	MMCX Plug Right Angle	50 Ohms	Copper	Free Hanging (In-Line)	Panel Mount	RG-316 DB	BNC to MMCX	Bulkhead - Front Side Nut	2 GHz
Amphenol Custom Cable Q-0701O000R001M	Male	Shielded	BNC Jack	Female	1 m	3.3 ft	39.4 in	MMCX Plug Right Angle	50 Ohms	Copper	Free Hanging (In-Line)	Panel Mount	RG-316 DB	BNC to MMCX	Bulkhead - Front Side Nut	2 GHz
Amphenol Custom Cable Q-0701O000R036i	Male	Shielded	BNC Jack	Female	91.44 cm		36 in	MMCX Plug Right Angle	50 Ohms	Copper	Free Hanging (In-Line)	Panel Mount	RG-316 DB	BNC to MMCX	Bulkhead - Front Side Nut	2 GHz
Amphenol Custom Cable Q-0701O000R003M	Male	Shielded	BNC Jack	Female	3 m	9.8 '	118.1 in	MMCX Plug Right Angle	50 Ohms	Copper	Free Hanging (In-Line)	Panel Mount	RG-316 DB	BNC to MMCX	Bulkhead - Front Side Nut	2 GHz
Amphenol Custom Cable Q-0701O000R.25M	Male	Shielded	BNC Jack	Female				MMCX Plug Right Angle	50 Ohms	Copper	Free Hanging (In-Line)	Panel Mount	RG-316 DB	BNC to MMCX	Bulkhead - Front Side Nut	2 GHz	9.843 "	250 mm
Amphenol Custom Cable Q-0701O000R2.5M	Male	Shielded	BNC Jack	Female	2.5 m	8.2 '	98.4 in	MMCX Plug Right Angle	50 Ohms	Copper	Free Hanging (In-Line)	Panel Mount	RG-316 DB	BNC to MMCX	Bulkhead - Front Side Nut	2 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 220.18
		25	$ 215.88
		50	$ 211.58
		100	$ 207.28
		250	$ 202.98

Description

General part information

Q-0701O0 Series

Cable Assembly Coaxial BNC to MMCX RG-316 DB 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
