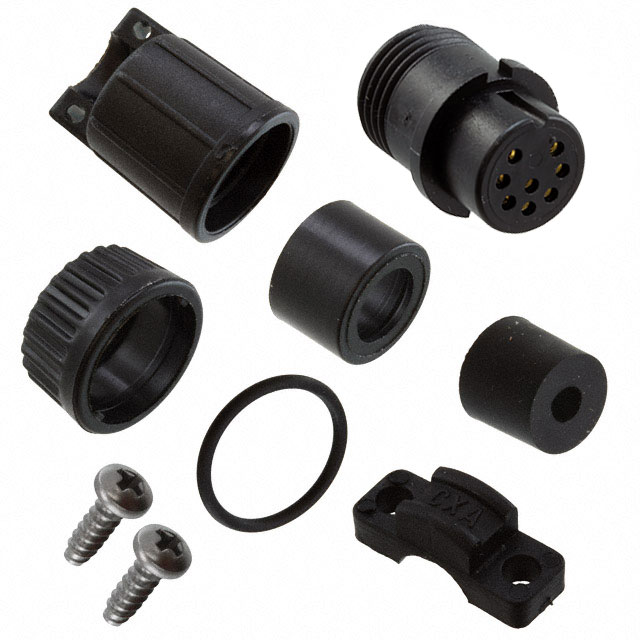

3282-8SG-521

Active

Conxall/Switchcraft

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsMulti-Con-X Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3282-8SG-521

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.21 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3282-8S Series

Part	Fastening Type	Current Rating (Amps)	Color	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shielding	Backshell Material, Plating	Connector Type	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Mounting Type	Primary Material	Features	Contact Material	Number of Positions	Voltage Rating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-8SG-521	Bayonet Lock	5.6 A	Black	-40 °C	115 °C	Keyed	Unshielded	Nylon Polyamide (PA)	Female Sockets Plug	Gold	5.33 mm	5.84 mm	0.21 in	0.23 in	Weathertight	Free Hanging (In-Line)	Plastic	Backshell Cable Clamp	Brass	8	600 V
Conxall/Switchcraft 3282-8SG-318	Bayonet Lock	5.6 A	Black	-40 °C	115 °C	Keyed	Unshielded	Nylon Polyamide (PA)	Female Sockets Plug	Gold					Weathertight	Free Hanging (In-Line)	Plastic	Backshell	Brass	8	600 V	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-8SG-518	Bayonet Lock	5.6 A	Black	-40 °C	115 °C	Keyed	Unshielded	Nylon Polyamide (PA)	Female Sockets Plug	Gold					Weathertight	Free Hanging (In-Line)	Plastic	Backshell Cable Clamp	Brass	8	600 V	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-8SG-315	Bayonet Lock	5.6 A	Black	-40 °C	115 °C	Keyed	Unshielded	Nylon Polyamide (PA)	Female Sockets Plug	Gold					Weathertight	Free Hanging (In-Line)	Plastic	Backshell	Brass	8	600 V					0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-8SG-528	Bayonet Lock	5.6 A	Black	-40 °C	115 °C	Keyed	Unshielded	Nylon Polyamide (PA)	Female Sockets Plug	Gold	7.11 mm	7.37 mm	0.28 in	0.29 in	Weathertight	Free Hanging (In-Line)	Plastic	Backshell Cable Clamp	Brass	8	600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.72
		10	$ 19.83
		25	$ 17.96
		50	$ 16.70
		100	$ 15.55
		250	$ 14.20
		500	$ 13.29

Description

General part information

3282-8S Series

8 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Multi-Con-X Connectors

Datasheet
