TR9CE7080LPCIMR6BLPS

Active

GlobTek, Inc.

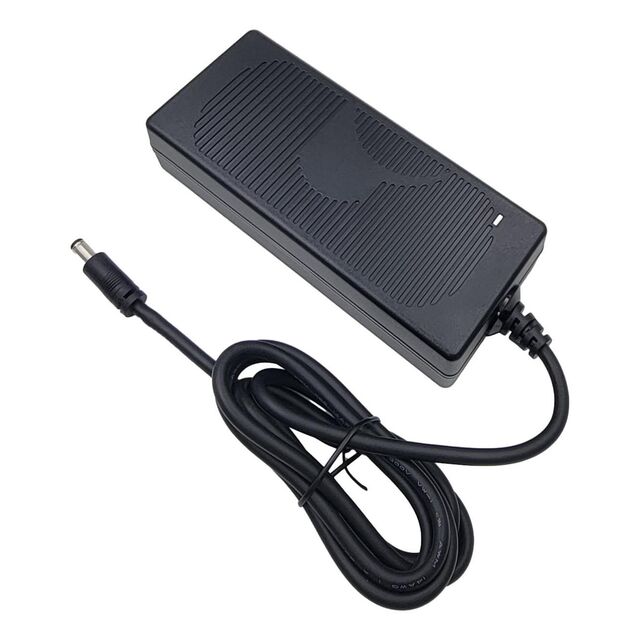

AC/DC DESKTOP ADAPTER 12V 85W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR9CE7080LPCIMR6BLPS

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 85W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CE7080LPCIMR6BLPS

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	7.08 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	85 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	1310, 60601-1-2, 62368-1, 60335-1, 60601-1-11, 61347-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TR9CE7080 Series

Part	Current - Output (Max) [Max]	Form	Voltage - Output	Power (Watts)	Input Connector	Region Utilized	Standard Number	Input Type	Approval Agency	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Applications	Output Connector	Output Connector [diameter]	Output Connector [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption [Max]	Efficiency	Output Connector [x]	Output Connector
GlobTek, Inc. TR9CE7080CPCIMR6BLPS	7.08 A	Desktop (Class I)	12 V	85 W	IEC 320-C14	International	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Cord	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	Positive Center	90 VAC	264 VAC	1.2 m	47.2 in	Household Appliances ITE (Commercial) Medical	Barrel Plug	2.1 mm 5.5 mm	11 mm	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	150 mW	Level VI
GlobTek, Inc. TR9CE7080LPCIMR6BLPS	7.08 A	Desktop (Class I)	12 V	85 W	IEC 320-C14	International	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	Cord	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	Positive Center	90 VAC	264 VAC	1.2 m	47.2 in	Household Appliances ITE (Commercial) Medical	Barrel Plug	2.5 mm 5.5 mm		149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	150 mW	Level VI	11 mm
GlobTek, Inc. TR9CE7080YL4SIMR6LPS	7.08 A	Desktop (Class I)	12 V	85 W	IEC 320-C14	International		Cord	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI		90 VAC	264 VAC	1.2 m	47.2 in	Household Appliances ITE (Commercial) Medical	Power DIN			149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	150 mW	CoC Tier 2 Level VI		4 Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.44
		5	$ 44.73
		20	$ 42.60
		40	$ 39.76
		60	$ 39.05
		100	$ 37.77

Description

General part information

TR9CE7080 Series

12V 85 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
