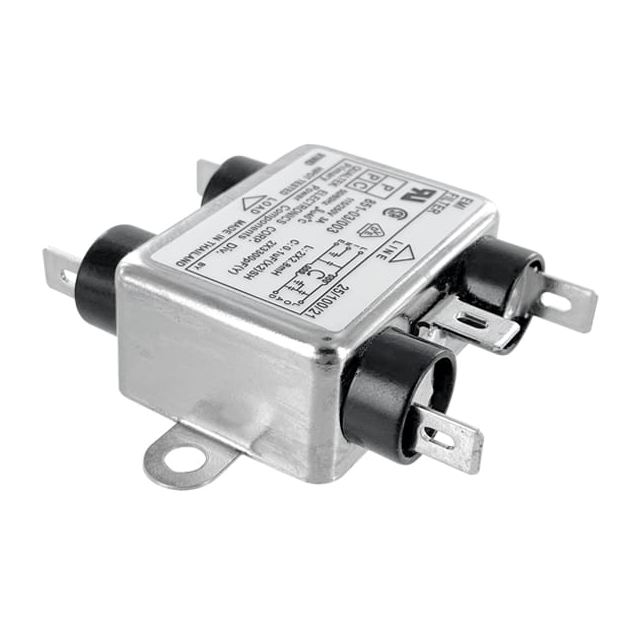

851-03/003
ActiveQualtek
LINE FILTER 115V/250VAC 3A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
851-03/003
ActiveQualtek
LINE FILTER 115V/250VAC 3A CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 851-03/003 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Single Stage |
| Current | 3 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 2.8 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 115 V, 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.41 | |
| 10 | $ 8.86 | |||
| 33 | $ 8.43 | |||
| 66 | $ 7.94 | |||
| 99 | $ 7.19 | |||
| 231 | $ 6.95 | |||
| 462 | $ 6.70 | |||
| 957 | $ 6.45 | |||
Description
General part information
851-03 Series
Single Phase EMC/EMI Line Filter 3 A 115V, 250V 50/60Hz Single Stage Quick Connect
