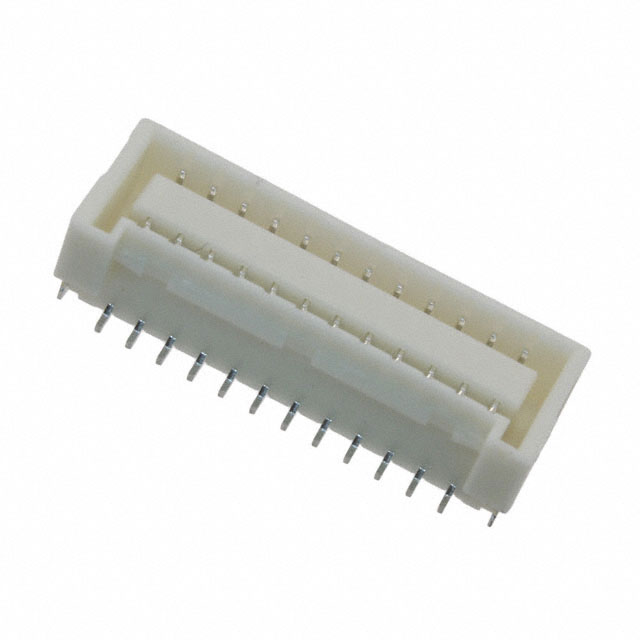

BM24B-ZPDSS-TF
ActiveJST Sales America Inc.
CONN HEADER SMD 24POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
BM24B-ZPDSS-TF
ActiveJST Sales America Inc.
CONN HEADER SMD 24POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM24B-ZPDSS-TF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Outer Shroud Contact |
| Current Rating (Amps) | 2 A |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 5.56 mm |
| Insulation Height [z] | 0.219 in |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights [z] | 9.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.53 | |
| 10 | $ 1.93 | |||
| 100 | $ 1.49 | |||
| 500 | $ 1.25 | |||
| Digi-Reel® | 1 | $ 2.53 | ||
| 10 | $ 1.93 | |||
| 100 | $ 1.49 | |||
| 500 | $ 1.25 | |||
| Tape & Reel (TR) | 1000 | $ 1.17 | ||
| 2000 | $ 1.09 | |||
| 3000 | $ 1.05 | |||
| 5000 | $ 1.00 | |||
| 7000 | $ 0.97 | |||
| 10000 | $ 0.94 | |||
Description
General part information
BM24B-ZP Series
Connector Header Surface Mount 24 position 0.059" (1.50mm)
