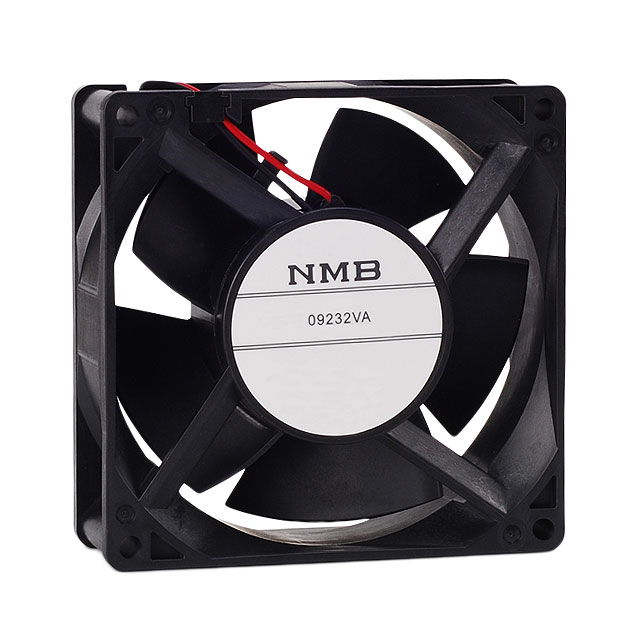

09232VA-24R-CAS-0

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 92 MM, 32 MM, BALL BEARING, 105.94 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 92 MM, 32 MM, BALL BEARING, 105.94 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	09232VA-24R-CAS-0

Air Flow	2.97 mł/min
Air Flow	105.9 CFM
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	12 W
RPM	7000 RPM
Static Pressure	1.1 in H2O
Static Pressure	274 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	18 VDC
Weight	219.99 g
Weight	0.485 lb
Width [y]	32 mm

Part	RPM	Termination	Ingress Protection	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Air Flow	Air Flow	Material - Frame	Noise	Power (Watts)	Voltage - Rated	Bearing Type	Weight	Weight	Width [y]	Material - Blade
NMB TECHNOLOGIES 09232VA-24R-CAS-0	7000 RPM	2 Wire Leads	IP69K - Dust Tight High Temp Water Jets Waterproof	26.4 VDC	18 VDC	Tubeaxial	1.1 in H2O	274 Pa	70 °C	70 °C	-10 °C	-10 °C	0.5 A	2.97 mł/min	105.9 CFM	Plastic	59 dB(A)	12 W	24 VDC	Ball	219.99 g	0.485 lb	32 mm	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 105.9 CFM (2.97mł/min) 2 Wire Leads
