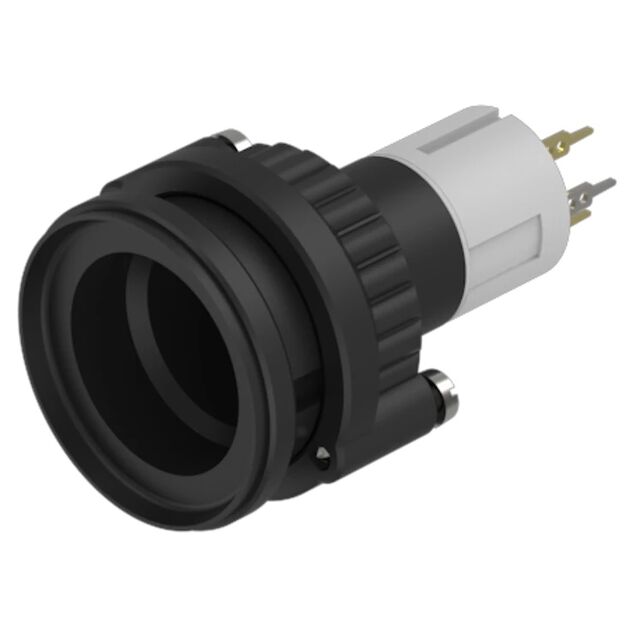

14-476.036

Active

EAO

SWITCH PB DPST-NC 0.1A 42V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NC 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	14-476.036

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	SPST-NC
Current Rating (Amps)	100 mA
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off
Termination Style	PC Pin, Solder Lug
Type	Standard
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Part	Current Rating (Amps)	Circuit	Actuator Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Switch Function	Termination Style	Voltage Rating - AC	Mounting Type	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage Rating - DC	Mechanical Life
EAO 14-476.036	100 mA	SPST-NC	Round Button (Not Included)	IP67 - Dust Tight Waterproof	22.3 mm	On-Off	PC Pin Solder Lug	42 V	Panel Mount Front	No Marking	55 °C	-25 °C	Standard	42 V	1000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
