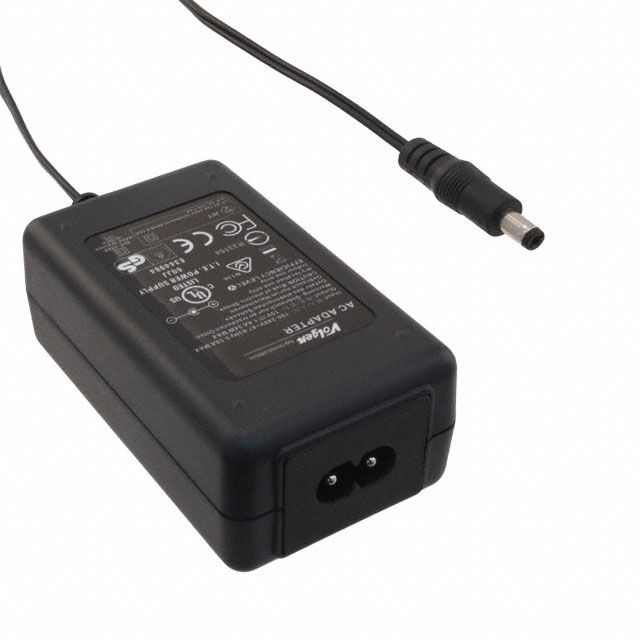

KTPS24-1220DT 2P

Obsolete

Volgen + Furuno

AC/DC DESKTOP ADAPTER 12V 24W

Deep-Dive with AI

Search across all available documentation for this part.

KTPS24-1220DT 2P

Obsolete

Volgen + Furuno

AC/DC DESKTOP ADAPTER 12V 24W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KTPS24-1220DT 2P

Applications	ITE (Commercial)
Approval Agency	IEC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2 A
Efficiency	Level V
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	24 W
Region Utilized	International
Size / Dimension [x]	3.46 "
Size / Dimension [x]	88 mm
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	60950-1
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	12 V
Weight	0.366 lb
Weight	166.01 g

KTPS24 Series

Part	Efficiency	Current - Output (Max) [Max]	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Input Connector	Applications	Polarization	Approval Agency	Power (Watts)	Output Connector [x]	Output Connector [diameter]	Output Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Form	Input Type	Operating Temperature [Max]	Voltage - Output	Standard Number	Output Connector [z]	Output Connector [y]	Weight	Weight
Volgen + Furuno KTPS24-48005WA-VI-P1R	Level VI	500 mA	1.5 m	59 in	240 VAC	100 VAC	North America	NEMA 1-15P	ITE (Commercial)	Positive Center	cUL PSE UL	24 W	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	Wall Mount (Class II)	Fixed Blade	40 °C	48 V
Volgen + Furuno KTPS24-05040WA-VI-P1R	Level VI	4 A	1.5 m	59 in	240 VAC	100 VAC	North America	NEMA 1-15P	ITE (Commercial)	Positive Center	cUL PSE UL	20 W	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	Wall Mount (Class II)	Fixed Blade	40 °C	5 V
Volgen + Furuno KTPS24-07030WA-VI-P2	Level VI	3 A	1.5 m	59 in	240 VAC	100 VAC	North America	NEMA 1-15P	ITE (Commercial)	Positive Center	cUL PSE UL	21 W	9.5 mm	2.5 mm 5.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	Wall Mount (Class II)	Fixed Blade	40 °C	7 V
Volgen + Furuno KTPS24-06040WA-VI-P2	Level VI	4 A	1.5 m	59 in	240 VAC	100 VAC	North America	NEMA 1-15P	ITE (Commercial)	Positive Center	cUL PSE UL	24 W	9.5 mm	2.5 mm 5.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	Wall Mount (Class II)	Fixed Blade	40 °C	5.9 V
Volgen + Furuno KTPS24-07030WA-VI-P1	Level VI	3 A	1.5 m	59 in	240 VAC	100 VAC	North America	NEMA 1-15P	ITE (Commercial)	Positive Center	cUL PSE UL	21 W	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	Wall Mount (Class II)	Fixed Blade	40 °C	7 V
Volgen + Furuno KTPS24-07530DT-2P-VI-P1	Level VI	3 A	1.5 m	59 in	240 VAC	100 VAC	International	IEC 320-C8	ITE (Commercial)	Positive Center	CB CE cUL GS PSE UL	23 W	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	50 mm	88 mm	3.46 "	1.34 in	1.97 "	34 mm	Desktop (Class II)	Cord	40 °C	7.5 V
Volgen + Furuno KTPS24-05040WA-VI-P1	Level VI	4 A	1.5 m	59 in	240 VAC	100 VAC	North America	NEMA 1-15P	ITE (Commercial)	Positive Center	IEC	24 W	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	Wall Mount (Class II)	Fixed Blade	40 °C	5 V	60950-1
Volgen + Furuno KTPS24-15016WA-VI-P1	Level VI	1.6 A	1.5 m	59 in	240 VAC	100 VAC	North America	NEMA 1-15P	ITE (Commercial)	Positive Center	cUL PSE UL	24 W	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	Wall Mount (Class II)	Fixed Blade	40 °C	15 VDC
Volgen + Furuno KTPS24-24010WA-VI-P1R	Level VI	1 A	1.5 m	59 in	240 VAC	100 VAC	North America	NEMA 1-15P	ITE (Commercial)	Positive Center	IEC	24 W	2.1 mm		Barrel Plug R/A	34 mm	72 mm	2.83 "	2.05 in	1.34 in	52 mm	Wall Mount (Class II)	Fixed Blade	40 °C	24 V	60950-1	9.5 mm	5.5 mm
Volgen + Furuno KTPS24-1220DT 2P	Level V	2 A	1.5 m	59 in	240 VAC	100 VAC	International	IEC 320-C8	ITE (Commercial)	Positive Center	IEC	24 W	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	50 mm	88 mm	3.46 "	1.34 in	1.97 "	34 mm	Desktop (Class II)	Cord	40 °C	12 V	60950-1			0.366 lb	166.01 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

KTPS24 Series

12V 24 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Documents

Technical documentation and resources

No documents available
