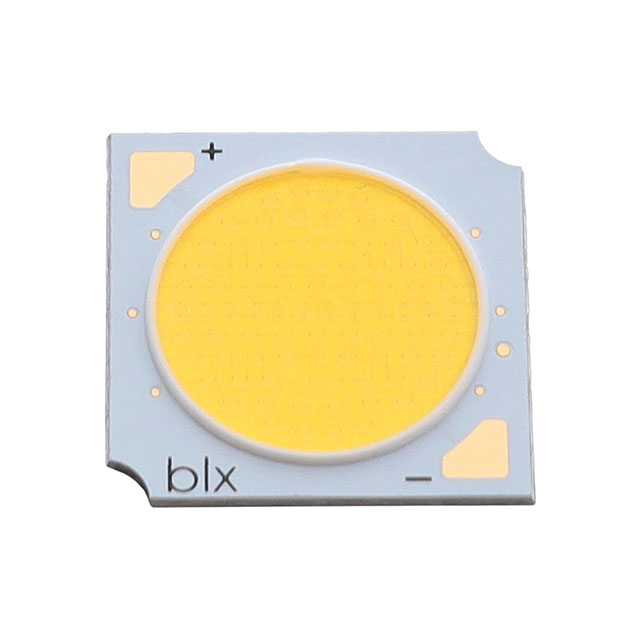

BXRE-65E2001-C-83

Active

BRIDGELUX

LED COB V13 CL WHT SQUARE 6500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-65E2001-C-83

Active

BRIDGELUX

LED COB V13 CL WHT SQUARE 6500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-65E2001-C-83

CCT (K)	6500 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.75 A
Current - Test	500 mA
Height [z]	1.65 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14.8 mm
Lumens/Watt @ Current - Test	181 lm/W
Luminous Flux @ Current/Temperature	3015 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	33.4 V

BXRE-65 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Temperature - Test	Configuration	Light Emitting Surface (LES) [diameter]	Type	Lens Type	Lumens/Watt @ Current - Test	Current - Max [Max]	CCT (K)	Height [z]	Color	Current - Test	Viewing Angle	Features
BRIDGELUX BXRE-65E2001-C-74	19 mm	19 mm	3383 lm	80	33.9 V	85 °C	Square	14 mm	Chip On Board (COB)	Flat	158 lm/W	1.26 A	6500 K	1.7 mm	Cool White	630 mA
BRIDGELUX BXRE-65E4001-B-73	24 mm	24 mm	4833 lm	80	34 V	85 °C	Square	19.2 mm	Chip On Board (COB)	Flat	158 lm/W	1.8 A	6500 K	1.7 mm	Cool White	900 mA	120 °
BRIDGELUX BXRE-65S1001-B-74			1087 lm	95	33.7 V	85 °C	Square	10.2 mm	Chip On Board (COB)	Flat	119 lm/W	540 mA	6500 K	1.7 mm	Cool White	270 mA	120 °
BRIDGELUX BXRE-65C6501-C-74	28 mm	28 mm	11722 lm	70	50.7 V	85 °C	Square	22.6 mm	Chip On Board (COB)	Flat	161 lm/W	2.88 A	6500 K	1.7 mm	Cool White	1.44 A	120 °
BRIDGELUX BXRE-65E2001-C-73	19 mm	19 mm	3383 lm	80	33.9 V	85 °C	Square	14 mm	Chip On Board (COB)	Flat	158 lm/W	1.26 A	6500 K	1.7 mm	Cool White	630 mA	120 °
BRIDGELUX BXRE-65E2001-C-83	19 mm	19 mm	3015 lm	80	33.4 V		Square	14.8 mm	Chip On Board (COB)	Flat	181 lm/W	1.75 A	6500 K	1.65 mm	Cool White	500 mA	120 °
BRIDGELUX BXRE-65C4001-C-74	24 mm	24 mm	6340 lm	70	34 V	85 °C	Square	19.2 mm	Chip On Board (COB)	Flat	159 lm/W	2.34 A	6500 K	1.7 mm	Cool White
BRIDGELUX BXRE-65S0801-D-74	12.5 mm	12.5 mm	771 lm	98	17.2 V		Square	9 mm	Chip On Board (COB)	Flat	128 lm/W	700 mA	6500 K	1.7 mm	Cool White	350 mA	120 °
BRIDGELUX BXRE-65C6501-D-73	28 mm	28 mm	7656 lm	70	33.4 V	85 °C	Square	22.6 mm	Chip On Board (COB)	Flat	164 lm/W	2.8 A	6500 K	1.7 mm	Cool White		120 °
BRIDGELUX BXRE-65S2001-C-74	19 mm	19 mm	2532 lm	95	33.7 V	85 °C	Square	14 mm	Chip On Board (COB)	Flat	119 lm/W	1.26 A	6500 K	1.7 mm	Cool White	630 mA	120 °	Dimming

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.67
		10	$ 4.11
		100	$ 3.81

Description

General part information

BXRE-65 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V13 Array White, Cool Square
