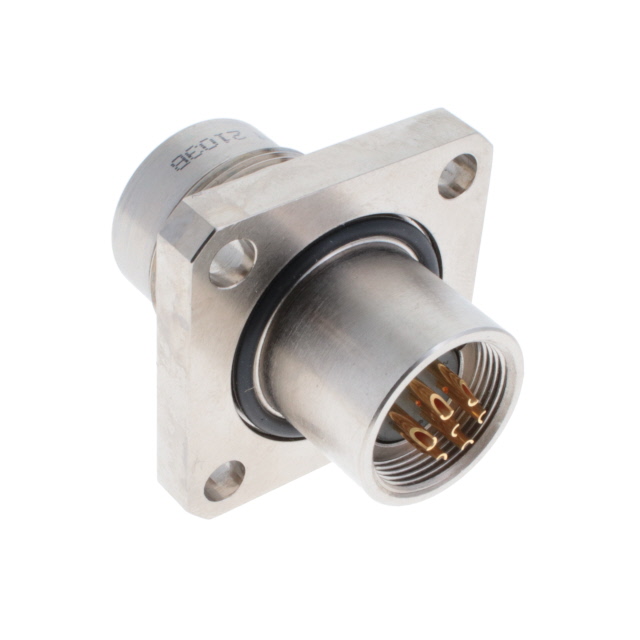

500-0009-N10

Active

Cinch Connectivity Solutions Trompeter

CONN RCPT MALE 7P SOLDER CUP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN RCPT MALE 7P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	500-0009-N10

Applications	Industrial
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Ingress Protection	Environment Sealed
Insert Material	Molybdenum Disulfide (MoS2), Polyamide (PA66), Nylon 6/6
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Material	Brass
Shell Size - Insert	10-7
Shielding	Unshielded

Part	Primary Material	Insert Material	Connector Type	Contact Finish - Mating	Orientation	Fastening Type	Ingress Protection	Color	Contact Material	Applications	Shell Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Number of Positions	Shielding	Mounting Feature
Cinch Connectivity Solutions Trompeter 500-0009-N10	Metal	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Male Pins Receptacle	Nickel	Keyed	Push-Pull	Environment Sealed	Silver	Copper Alloy	Industrial	Brass	7.5 A	85 °C	-20 C	10-7	7	Unshielded	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
