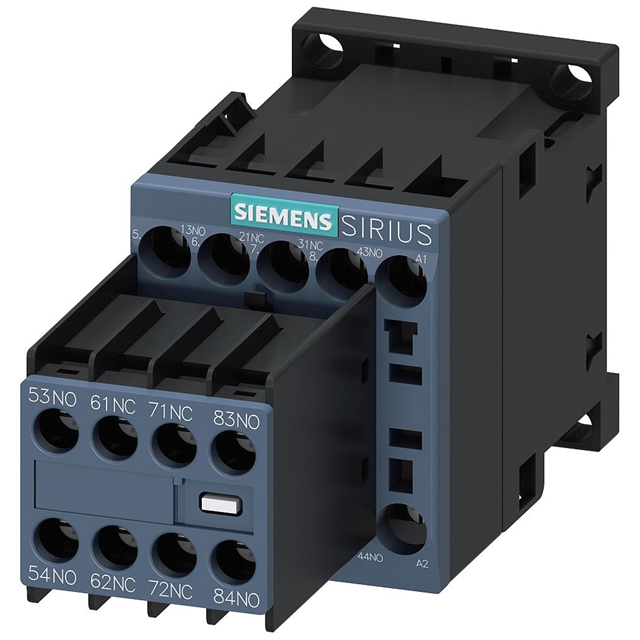

3RH23441AK200KA0

Active

Siemens

CONT RELAY 4NO+4NC 120V SZ00 SCR

Search across all available documentation for this part.

Active

Siemens

CONT RELAY 4NO+4NC 120V SZ00 SCR

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Termination Style	Features	Must Operate Voltage	Coil Voltage	Mounting Type	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Switching Voltage	Operate Time	Coil Power
Siemens 3RH23441AF00	8PST-4NO/4NC (4 Form A 4 Form B)	Screw Terminal	Auxiliary Contacts	93.5 VAC	110 VAC/DC	Chassis Mount DIN Rail	10 A	-25 °C	60 °C	15 ms	690 VAC	33 ms	37 VA
Siemens 3RH23441AK200KA0	8PST-4NO/4NC (4 Form A 4 Form B)	Screw Terminal	Auxiliary Contacts	102 VAC	120 VAC	Chassis Mount DIN Rail	10 A	-25 °C	60 °C	15 ms	690 VAC	33 ms	37 VA
Siemens 3RH23441DB400KA0	4PST-NO (4 Form A)	Screw Terminal	Auxiliary Contacts	19.2 VDC	24 VDC	Chassis Mount DIN Rail	10 A	-25 °C	60 °C	13 ms	690 VAC	100 ms	4 W
Siemens 3RH23441CK200KA0	8PST-4NO/4NC (4 Form A 4 Form B)	Screw Terminal	Auxiliary Contacts	102 VAC	120 VAC	Chassis Mount DIN Rail	10 A	-25 °C	60 °C	15 ms	690 VAC	33 ms	37 VA
Siemens 3RH23441AP000KA0	8PST-4NO/4NC (4 Form A 4 Form B)	Screw Terminal	Auxiliary Contacts	195.5 VAC	230 VAC	Chassis Mount DIN Rail	10 A	-25 °C	60 °C	15 ms	690 VAC	33 ms	37 VA
Siemens 3RH23441BG40	8PST-4NO/4NC (4 Form A 4 Form B)	Screw Terminal	Auxiliary Contacts	100 VDC	125 VDC	Chassis Mount DIN Rail	10 A	-25 °C	60 °C	13 ms	690 VAC	100 ms	4 W
Siemens 3RH23441DG40	4PST-NC (4 Form B)	Screw Terminal	Auxiliary Contacts		125 VDC	Chassis Mount DIN Rail	10 A	-25 °C	60 °C	13 ms	690 VAC	100 ms	4 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 159.80
