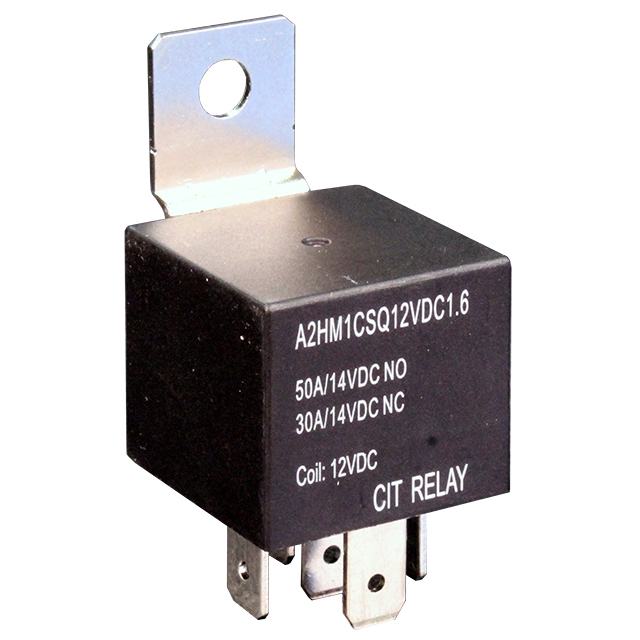

A2HM1CSQ12VDC1.6R
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 50A 12V
Deep-Dive with AI
Search across all available documentation for this part.
A2HM1CSQ12VDC1.6R
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 50A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A2HM1CSQ12VDC1.6R |
|---|---|
| Coil Current | 150 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 80 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 50 A |
| Features | Resistor, Sealed - Fully |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.64 | |
| 20 | $ 2.48 | |||
| 40 | $ 2.09 | |||
| 80 | $ 1.98 | |||
| 240 | $ 1.76 | |||
| 440 | $ 1.65 | |||
| 960 | $ 1.54 | |||
| 4900 | $ 1.49 | |||
Description
General part information
A2HM1CS Series
RELAY AUTOMOTIVE SPDT 50A 12V
