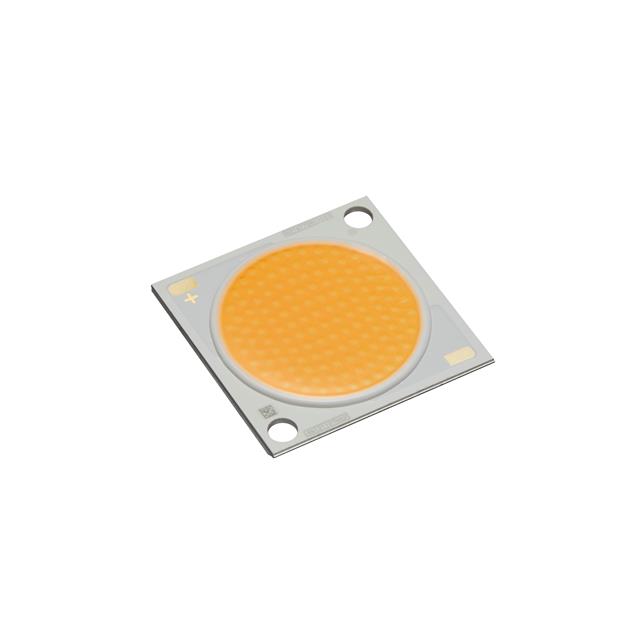

CLU04Q-1812E1-402H5X3
ActiveCitizen Finedevice Co Ltd
LED COB CLU04Q NEUT WHT SQ 4000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLU04Q-1812E1-402H5X3
ActiveCitizen Finedevice Co Ltd
LED COB CLU04Q NEUT WHT SQ 4000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLU04Q-1812E1-402H5X3 |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| Configuration | Square |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 2.76 A |
| Current - Test | 1.08 A |
| Features | With Connector |
| Height [z] | 1.4 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 22 mm |
| Lumens/Watt @ Current - Test | 147 lm/W |
| Luminous Flux @ Current/Temperature | 8654 lm |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 28 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Voltage - Forward (Vf) (Typ) | 50.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.76 | |
| 30 | $ 18.15 | |||
| 120 | $ 16.66 | |||
| 510 | $ 15.55 | |||
Description
General part information
CLU04Q Series
LED Lighting COBs Engines Modules Chip On Board (COB) CLU04Q White, Neutral Square
