51-372.F22D

Active

EAO

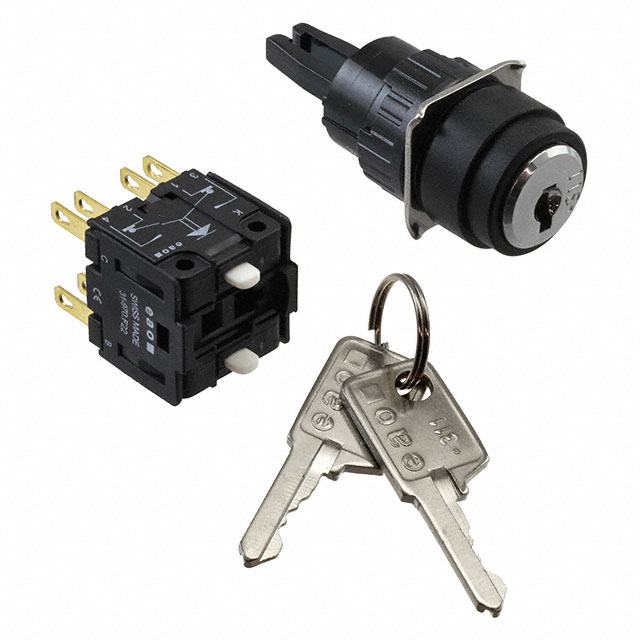

SWITCH KEYLOCK 3POS 4PST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 3POS 4PST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-372.F22D

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	4PST-2NO/2NC
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange [z]	42 mm
Features	IP65
Key Removable Positions	All
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On-Off, On-Off-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V

Part	Angle of Throw	Key Removable Positions	Actuator Type	Depth Behind Flange [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Contact Timing	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Circuit
EAO 51-372.F22D	90 °	All	Flat Key	42 mm	55 °C	-25 °C	IP65	On-Off-Off On-On-Off	Not Specified	250 V	5 A	0.11 in	Quick Connect Solder	2.8 mm	16 mm	4PST-2NO/2NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 3 Position 4PST-2NO/2NC 5A (AC) 250 VAC DC Panel Mount
