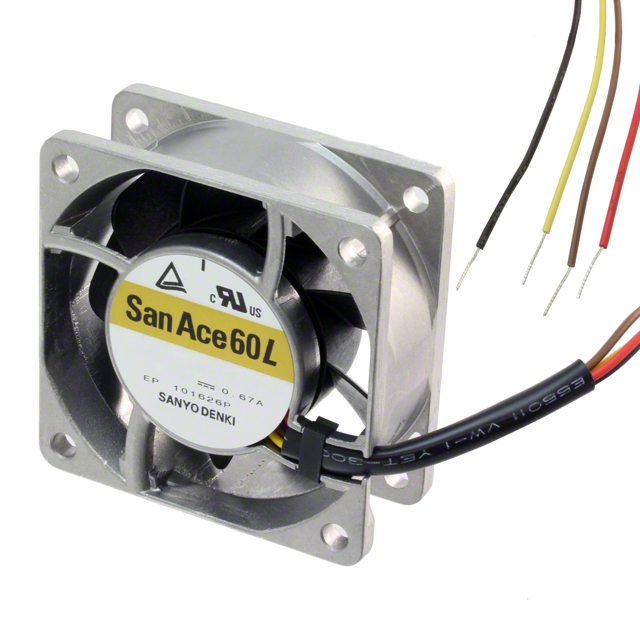

9LG0612P4J001

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9LG0612P4J001

Air Flow	38.8 CFM
Air Flow	1.09 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	390 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	180000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	47 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	8650 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.73 in H2O
Static Pressure	181.8 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.222 lb
Weight	100.7 g
Width [y]	25 mm

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Noise	Voltage - Rated	RPM	Bearing Type	Approval Agency	Air Flow	Air Flow	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Material - Blade	Termination	Fan Type	Width [y]	Material - Frame
Sanyo Denki America Inc. 9LG0612P4J001	Locked Rotor Protection PWM Control Speed Sensor (Tach)	60 mm	60 mm	47 dB	12 VDC	8650 RPM	Ball	CSA TUV UL	38.8 CFM	1.09 m³/min	0.73 in H2O	181.8 Pa	13.2 VDC	10.8 VDC	390 mA	0.222 lb	100.7 g	-20 °C	70 °C	-20 C	70 °C	180000 Hrs	Plastic	4 Wire Leads	Tubeaxial	25 mm	Aluminum
Sanyo Denki America Inc. 9LG0612H4D001	Locked Rotor Sensor	60 mm	60 mm	35 dB	12 VDC	6150 RPM	Ball	CSA TUV UL	27.5 CFM	0.77 m³/min	0.389 in H2O	96.9 Pa	13.2 VDC	10.8 VDC	0.17 A	0.222 lb	100.7 g	-20 °C	70 °C	-20 C	70 °C	180000 Hrs	Plastic	3 Wire Leads	Tubeaxial	25 mm	Aluminum
Sanyo Denki America Inc. 9LG0612H4001	Locked Rotor Protection Speed Sensor (Tach)	60 mm	60 mm	35 dB	12 VDC	6150 RPM	Ball	CSA TUV UL	27.5 CFM	0.77 m³/min	0.389 in H2O	96.9 Pa	13.2 VDC	10.8 VDC	0.17 A	0.222 lb	100.7 g	-20 °C	70 °C	-20 C	70 °C	180000 Hrs	Plastic	3 Wire Leads	Tubeaxial	25 mm	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 38.8 CFM (1.09m³/min) 4 Wire Leads
