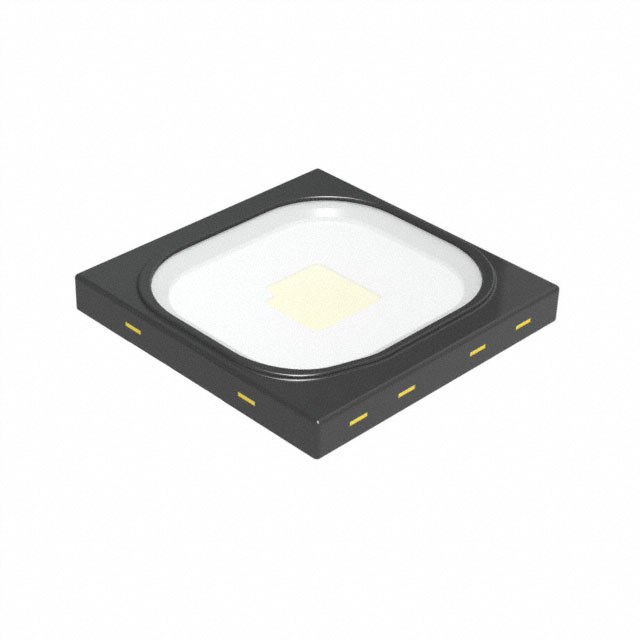

LUW HWQP-8M7N-EBVF46FCBB46-8E8H
Activeams-OSRAM USA INC.
LED OSLON WHITE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LUW HWQP-8M7N-EBVF46FCBB46-8E8H |
|---|---|
| Color | White |
| Current - Max [Max] | 1.5 A |
| Current - Test | 1 A |
| Flux @ 25°C, Current - Test | 325 lm |
| Flux @ 25°C, Current - Test [Max] | 400 lm |
| Flux @ 25°C, Current - Test [Min] | 250 lm |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Lumens/Watt @ Current - Test | 107 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [y] | 3.75 mm |
| Size / Dimension [y] | 0.148 in |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 4.3 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.05 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LUWHWQP Series
LED Lighting OSLON® Black Flat White 3.05V 1A 120° 5-SMD, No Lead
