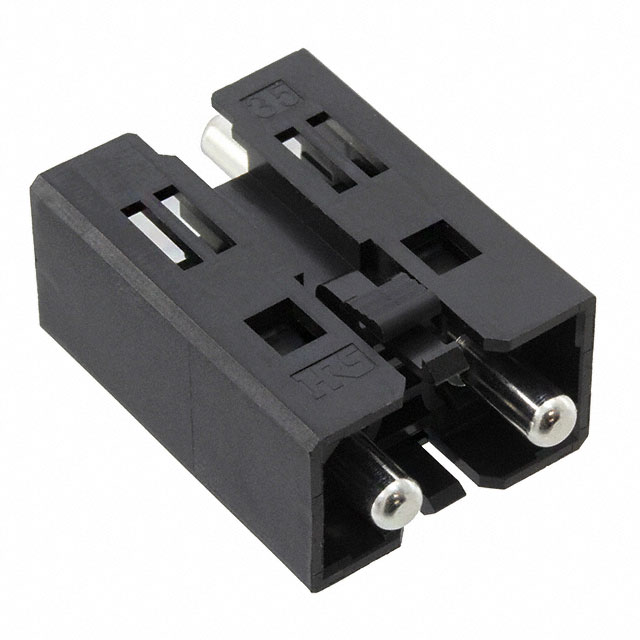

IT-P-2P-25H(11)

Active

Hirose Electric USA, Inc.

CONN HEADER 2POS 12MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HEADER 2POS 12MM

Technical Specifications

Parameters and characteristics for this part

Specification	IT-P-2P-25H(11)

Connector Type	Interposer
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	60 A
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.787 "
Insulation Height	19.99 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Mated Stacking Heights	25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Stacking
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	12 mm
Pitch - Mating	0.472 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	300 VDC

Part	Voltage Rating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Shape	Shrouding	Number of Positions Loaded	Contact Material	Material Flammability Rating	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Current Rating (Amps)	Insulation Height	Insulation Height	Fastening Type	Insulation Color	Number of Rows	Mated Stacking Heights
Hirose Electric USA, Inc. IT-P-2P-25H(11)	300 VDC	Solder	5.08 µm	200 µin	Silver	Circular	Shrouded - 4 Wall	All	Copper Alloy	UL94 V-0	Stacking	Interposer	12 mm	0.472 in	Polybutylene Terephthalate (PBT)	2	85 °C	-55 °C	Male Pin	60 A	0.787 "	19.99 mm	Locking Ramp	Black	1	25 mm
Hirose Electric USA, Inc. IT-P-2P-35H	300 VDC	Solder	5.08 µm	200 µin	Silver	Circular	Shrouded - 4 Wall	All	Copper Alloy	UL94 V-0	Stacking	Interposer	12 mm	0.472 in	Polybutylene Terephthalate (PBT)	2	85 °C	-55 °C	Male Pin	60 A	0.787 "	19.99 mm	Locking Ramp	Black	1	35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Stacking 2 position 0.472" (12.00mm)

Technical documentation and resources

No documents available
