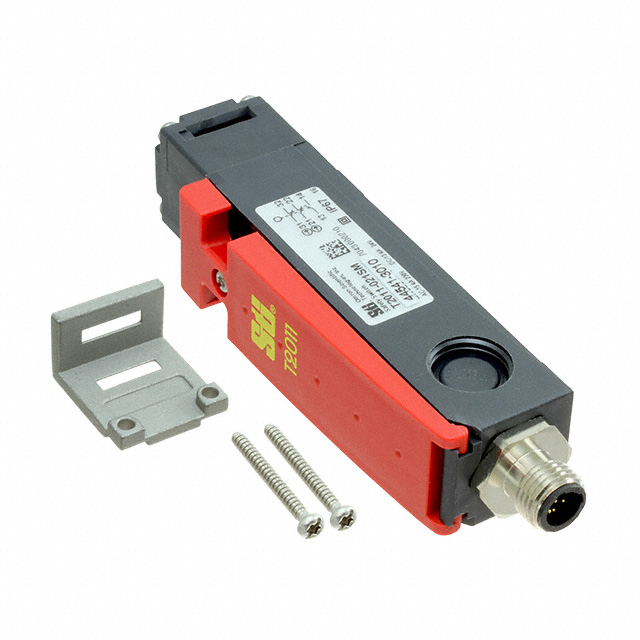

T2011-021QD

Obsolete

Omron Electronics Inc-EMC Div

INTERLOCK NON-LOCKING DPST

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

INTERLOCK NON-LOCKING DPST

Technical Specifications

Parameters and characteristics for this part

Part	Conduit Thread Size	Approval Agency	Ingress Protection	Termination Style	Voltage Rating	Holding Force	Type	Circuit	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type
Omron Electronics Inc-EMC Div T2011-021QD	M16	CE cULus	IP67 - Dust Tight Waterproof	Screw Terminal	24 VDC 230 VAC	612 gf	Non-Locking	DPST-NC SPST-NO	4 A	-20 C	80 C	Panel Disconnect
Omron Electronics Inc-EMC Div T2011-030TM	M16	CE cULus	IP67 - Dust Tight Waterproof	Screw Terminal	24 VDC 230 VAC	612 gf	Non-Locking	3PST-NC	4 A	-20 C	80 C	Panel Disconnect
Omron Electronics Inc-EMC Div T2011-021SM	M16	CE cULus	IP67 - Dust Tight Waterproof	Screw Terminal	24 VDC 230 VAC	612 gf	Non-Locking	DPST-NC SPST-NO	4 A	-20 C	80 C	Panel Disconnect
Omron Electronics Inc-EMC Div T2011-021

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

INTERLOCK NON-LOCKING DPST
